Distal Radius Instrument Set Specifications
Product Overview

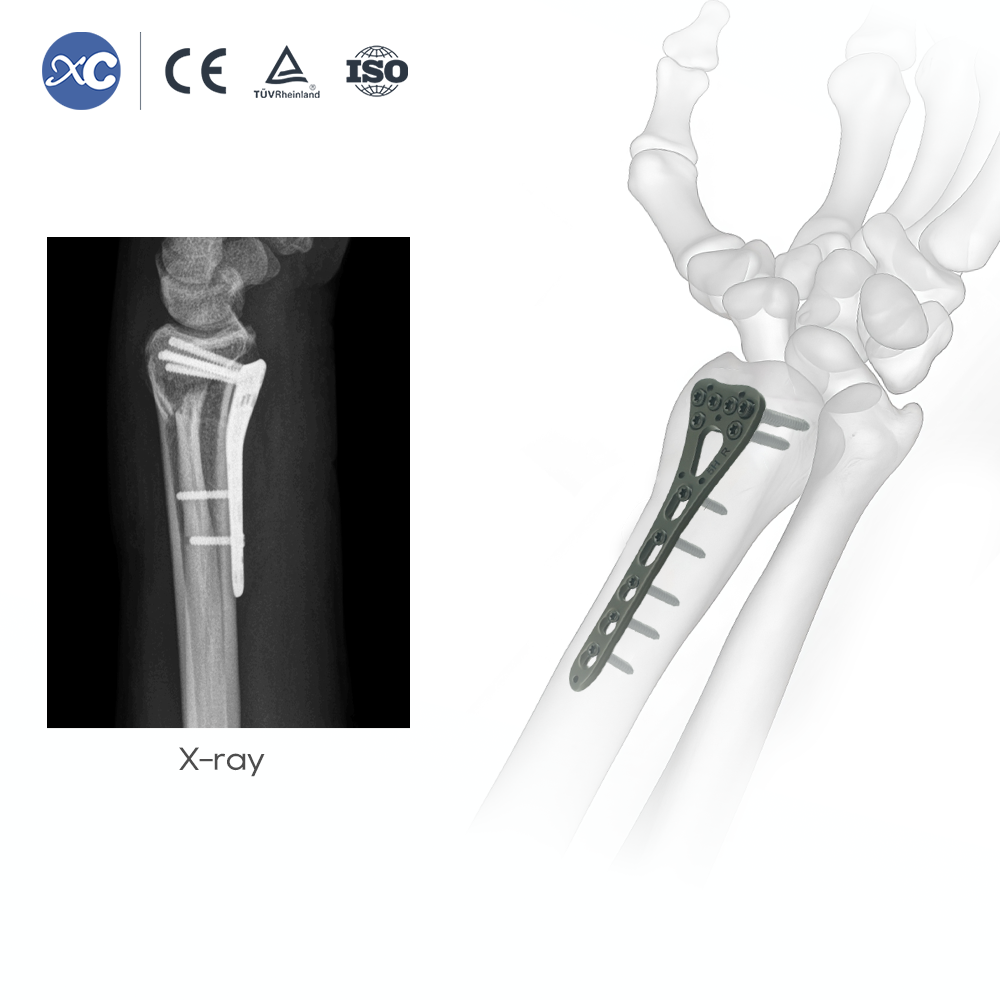

The Distal Radius Instrument Set is designed for volar anatomical fixation of distal radius fractures. It provides dedicated instruments and implant storage for Ø2.7 mm distal radius locking plate systems, supporting drilling, guiding, screw insertion, depth measurement, and organized implant management.

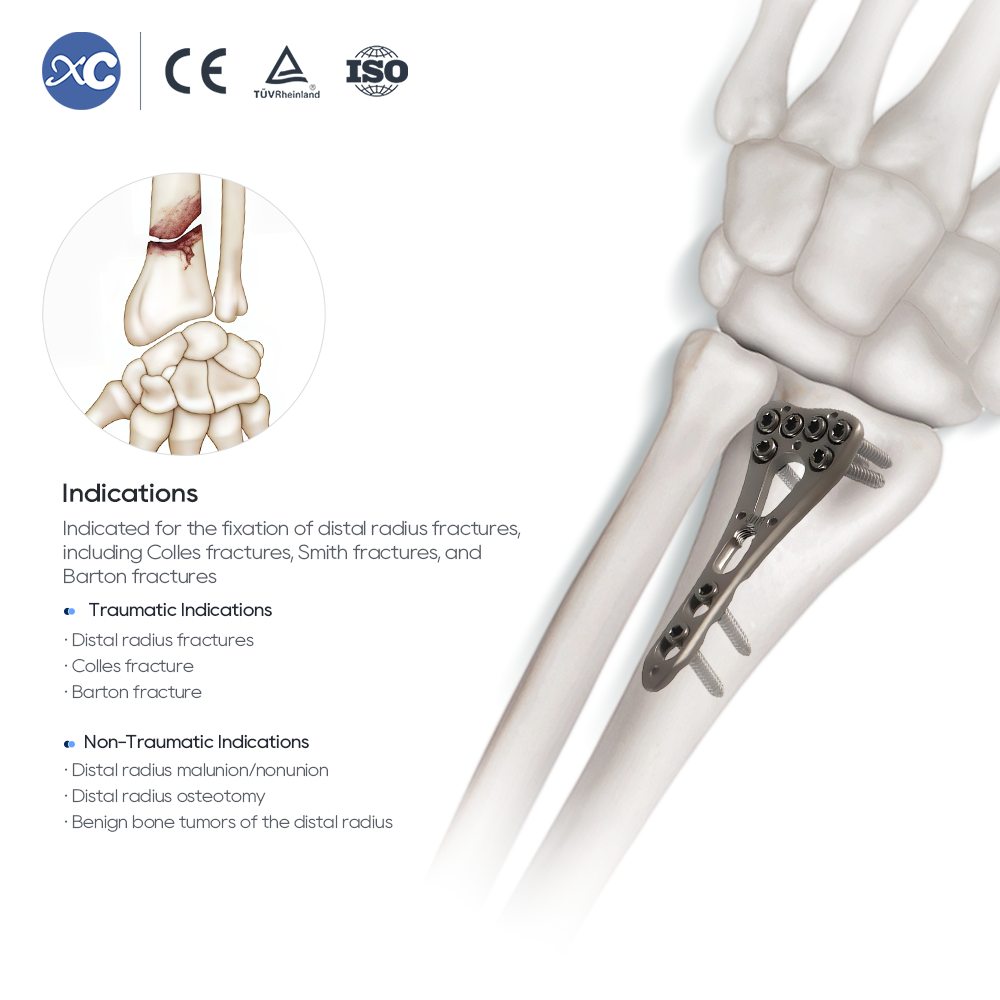

Indications & Clinical Application
- Designed for distal radius fracture fixation procedures.
- Applicable for volar anatomical fixation of distal radius fractures, including Colles, Smith, and Barton fracture patterns.
- Compatible with 2-hole to 7-hole distal radius volar locking plates.
System Compatibility
- Compatible Plate: Distal Radius Locking Plate, 6H on Head
- Compatible Plate Range: 2H / 3H / 4H / 5H / 6H / 7H
- Compatible Screw System: Ø2.7 mm locking and cortical screws
Compatible Screws
- HC2.7 Locking Screw
- HA2.7 Cortical Screw
- 12–30 mm
- 2 mm increments

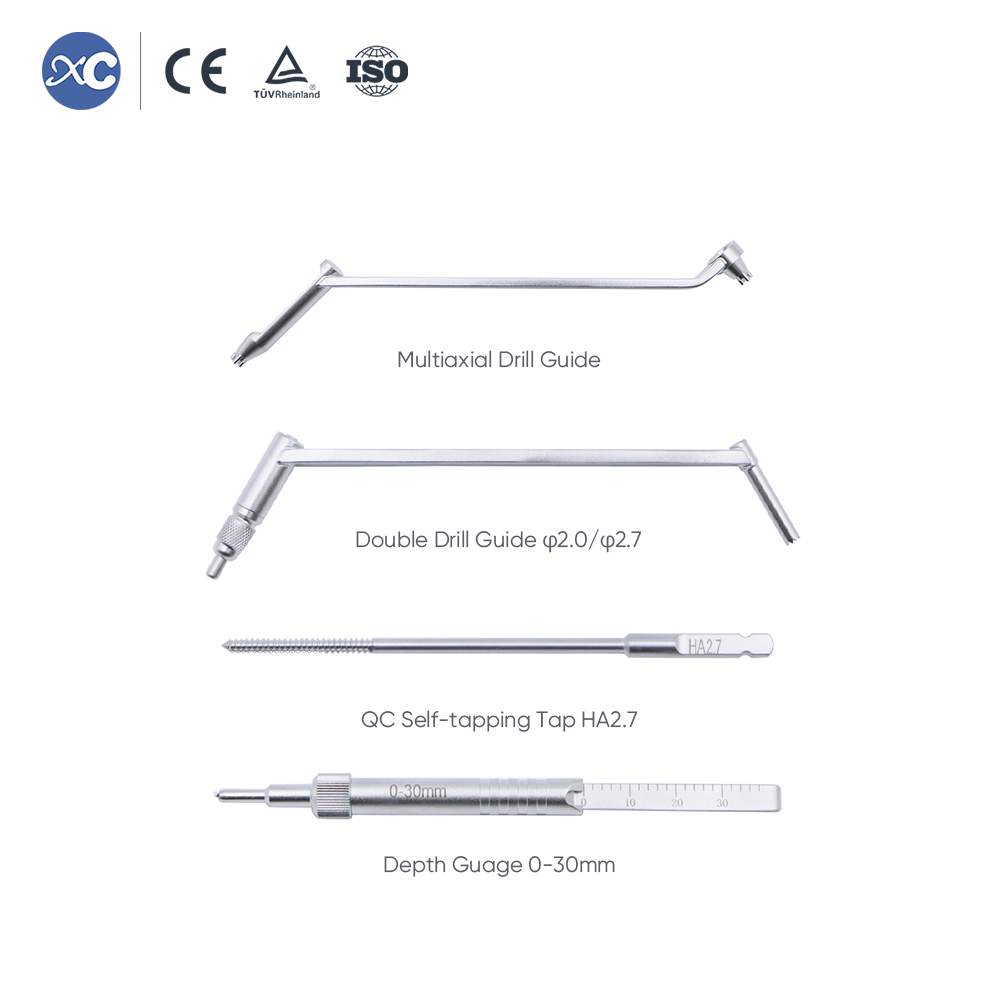

Instrument Features
- Multiaxial Drill Guide: Supports flexible drilling direction for distal radius locking plate fixation.
- Double Drill Guide: Ø2.0 / Ø2.7 mm drill guide for compatible drilling workflow.
- Depth Gauge: 0–30 mm measuring range for screw length selection.
- T8 Screwdriver: Quick-coupling Torx T8 screwdriver for compatible screw insertion.
- Locking Drill Sleeve: Ø2.0 mm sleeve for locking screw preparation.

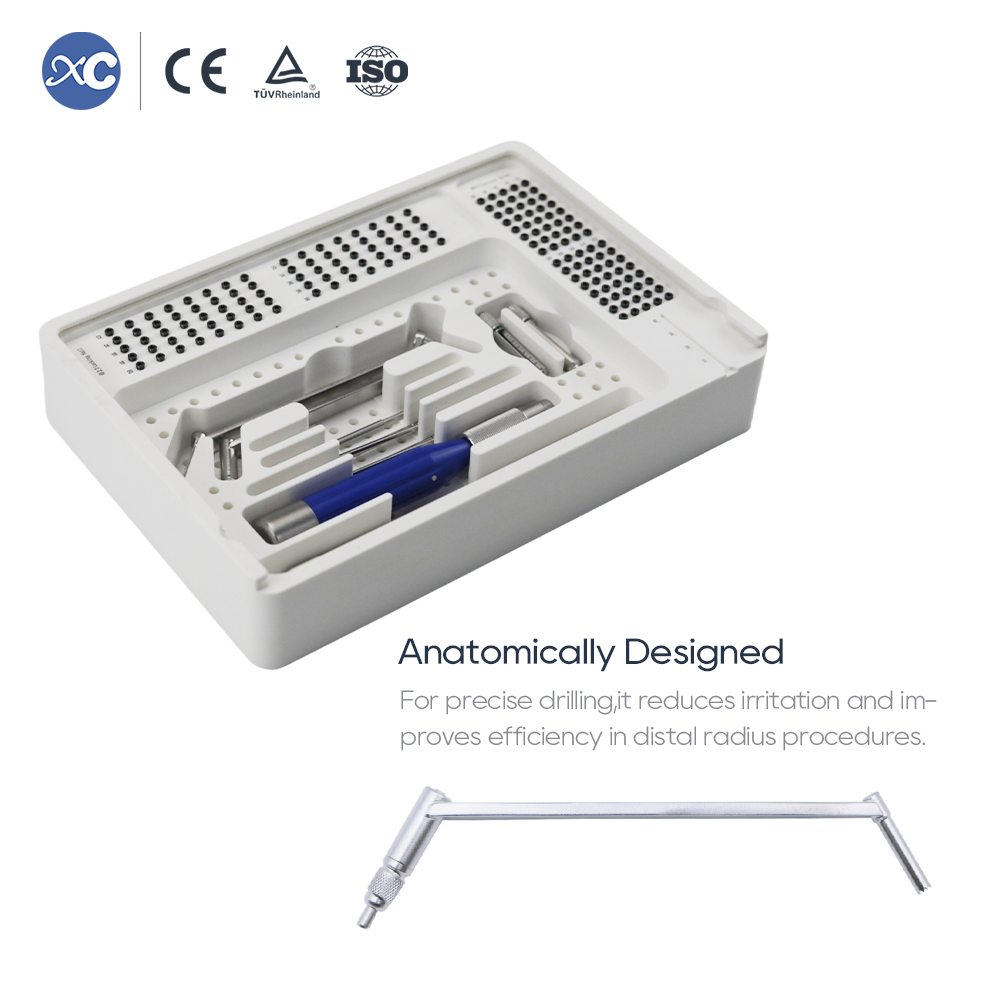

- HPP Box: Organized storage box for instruments and implant components.
Tray Implant Compatibility
| Compatible Implant Type | Diameter | Length Range | Increment |
|---|---|---|---|
| Locking Screw HC2.7 | Ø2.7 mm | 12–30 mm | 2 mm |
| Cortical Screw HA2.7 | Ø2.7 mm | 12–30 mm | 2 mm |
System Ordering Information
| Product | System Description | Compatible Plate | Compatible Screw |
|---|---|---|---|
| Distal Radius Instrument Set | Instrument tray with drilling, guiding, measuring and screw-driving instruments | Distal Radius Locking Plate, 2H–7H | HC2.7 / HA2.7 |

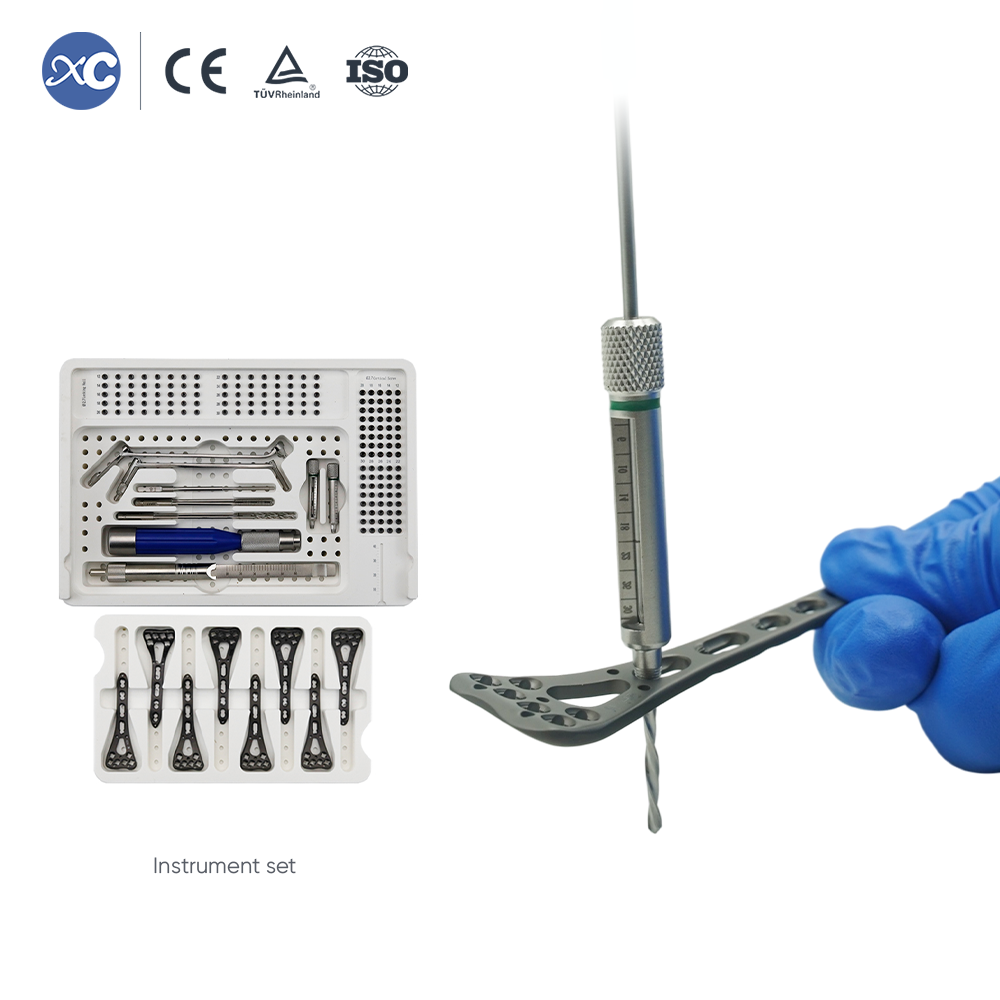

Instrument Configuration
| No. | REF | Description | Function |
|---|---|---|---|
| 1 | TYWXSDZ20 | Multiaxial Drill Guide | Supports multi-angle drilling guidance |
| 2 | TYSDZ2027 | Double Drill Guide Ø2.0 / Ø2.7 | Guides drilling for Ø2.0 and Ø2.7 mm workflow |
| 3 | TYCSC30 | Depth Gauge 0–30 mm | Measures screw length |
| 4 | TYAT8 | QC Torx Screwdriver T8 | Screw insertion and final tightening |
| 5 | TYSDDZ20 | Locking Drill Sleeve Ø2.0 | Assists locking screw drilling |
| 6 | TYAZT20130X | Quick Coupling Drill Bit Ø2.0 | Drilling preparation |
| 7 | TYAHA27 | QC Self-Tapping Tap HA2.7 | Thread preparation for HA2.7 cortical screw |
| 8 | TYAZKSB | QC Handle | Quick coupling handle for compatible instruments |
| 9 | RQRGMJH | HPP Box | Instrument and implant storage |
| 30 | Optional | Distal Radius Locking Plate | Plate specification can be selected as required |
Included Locking Screws HC2.7
| No. | REF | Description |
|---|---|---|
| 10 | RSZS2712 | 2.7 mm Locking Screw HC × 12 mm |
| 11 | RSZS2714 | 2.7 mm Locking Screw HC × 14 mm |
| 12 | RSZS2716 | 2.7 mm Locking Screw HC × 16 mm |
| 13 | RSZS2718 | 2.7 mm Locking Screw HC × 18 mm |
| 14 | RSZS2720 | 2.7 mm Locking Screw HC × 20 mm |
| 15 | RSZS2722 | 2.7 mm Locking Screw HC × 22 mm |
| 16 | RSZS2724 | 2.7 mm Locking Screw HC × 24 mm |
| 17 | RSZS2726 | 2.7 mm Locking Screw HC × 26 mm |
| 18 | RSZS2728 | 2.7 mm Locking Screw HC × 28 mm |
| 19 | RSZS2730 | 2.7 mm Locking Screw HC × 30 mm |
Included Cortical Screws HA2.7
| No. | REF | Description |
|---|---|---|
| 20 | RST8ZP2712 | 2.7 mm Cortical Screw HA × 12 mm |
| 21 | RST8ZP2714 | 2.7 mm Cortical Screw HA × 14 mm |
| 22 | RST8ZP2716 | 2.7 mm Cortical Screw HA × 16 mm |
| 23 | RST8ZP2718 | 2.7 mm Cortical Screw HA × 18 mm |
| 24 | RST8ZP2720 | 2.7 mm Cortical Screw HA × 20 mm |
| 25 | RST8ZP2722 | 2.7 mm Cortical Screw HA × 22 mm |
| 26 | RST8ZP2724 | 2.7 mm Cortical Screw HA × 24 mm |
| 27 | RST8ZP2726 | 2.7 mm Cortical Screw HA × 26 mm |
| 28 | RST8ZP2728 | 2.7 mm Cortical Screw HA × 28 mm |
| 29 | RST8ZP2730 | 2.7 mm Cortical Screw HA × 30 mm |

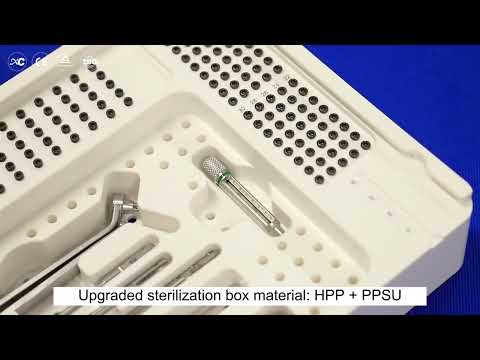

Material & Storage
- Tray Box: HPP box for organized storage and instrument management.
- Instrument Components: Dedicated drilling, guiding, measuring and screw-driving instruments for distal radius fixation.

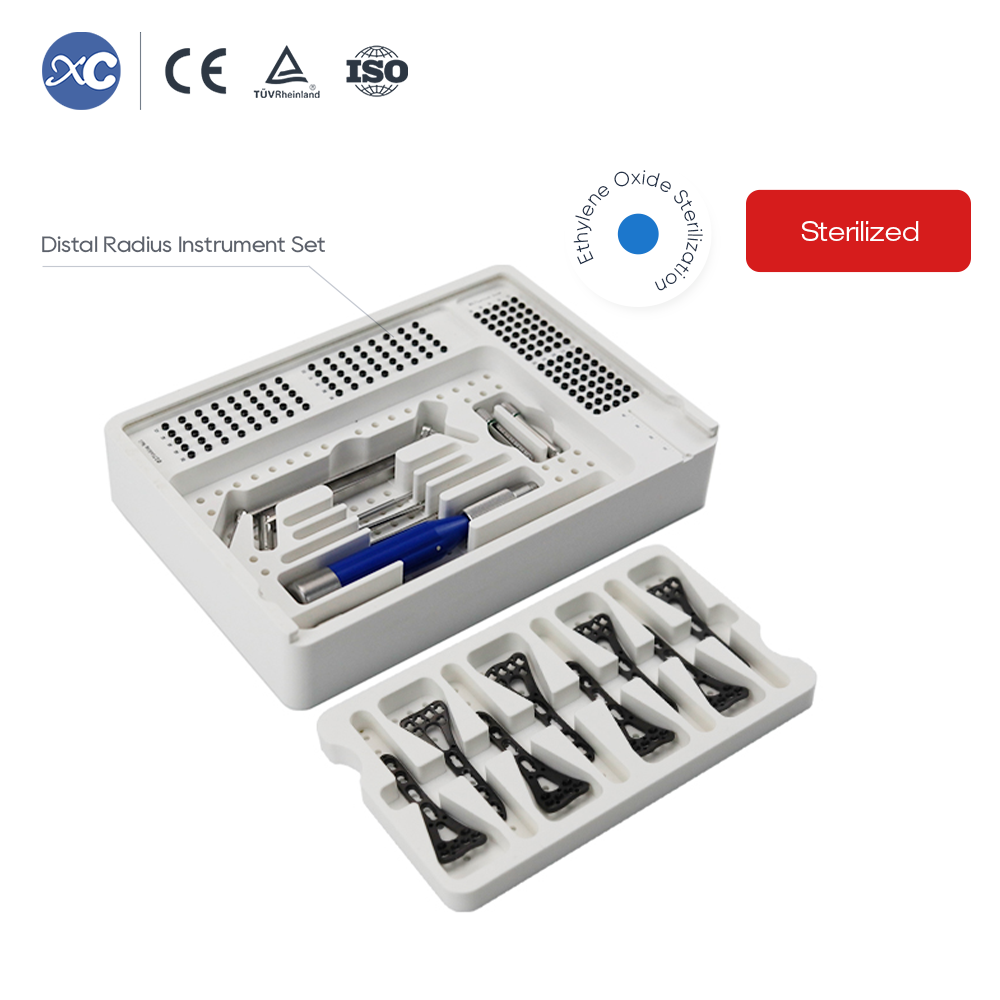

Sterilization & Compliance
- Supplied non-sterile unless otherwise specified.
- EO sterile packaging option available upon request.
- Compatible with standard instrument cleaning and sterilization workflow.
Note: This Distal Radius Instrument Set is optimized for Ø2.7 mm distal radius anatomical locking plate systems. The distal radius locking plate is optional and can be selected according to the required specification. When ordering, please specify the required plate side (Left or Right) and shaft length configuration (2H–7H) to ensure compatibility with the surgical procedure.
