Anterior Cervical Plate-I Specifications
Product Overview
Anterior Cervical Plate-I is designed for anterior cervical fixation and fusion procedures. The system features a 2.0 mm low-profile anatomical plate, smooth rounded edges, variable-angle locking, and one-touch dual-press locking design for efficient cervical spine fixation.
Core Specifications
| Parameter | Specification |
|---|---|
| Product Name | Anterior Cervical Plate-I |
| System | Anterior Cervical Plate System |
| Application Site | Anterior Cervical Spine |
| Indications | Anterior cervical fixation and fusion for cervical trauma, cervical tumors, cervical degenerative disc disease, and cervical deformity |
| Plate Design | Low-profile anatomical anterior cervical plate with smooth rounded edges |
| Plate Thickness | 2.0 mm |
| Locking Design | One-touch dual-press locking design |
| Screw Angulation | Variable-angle locking screw design |

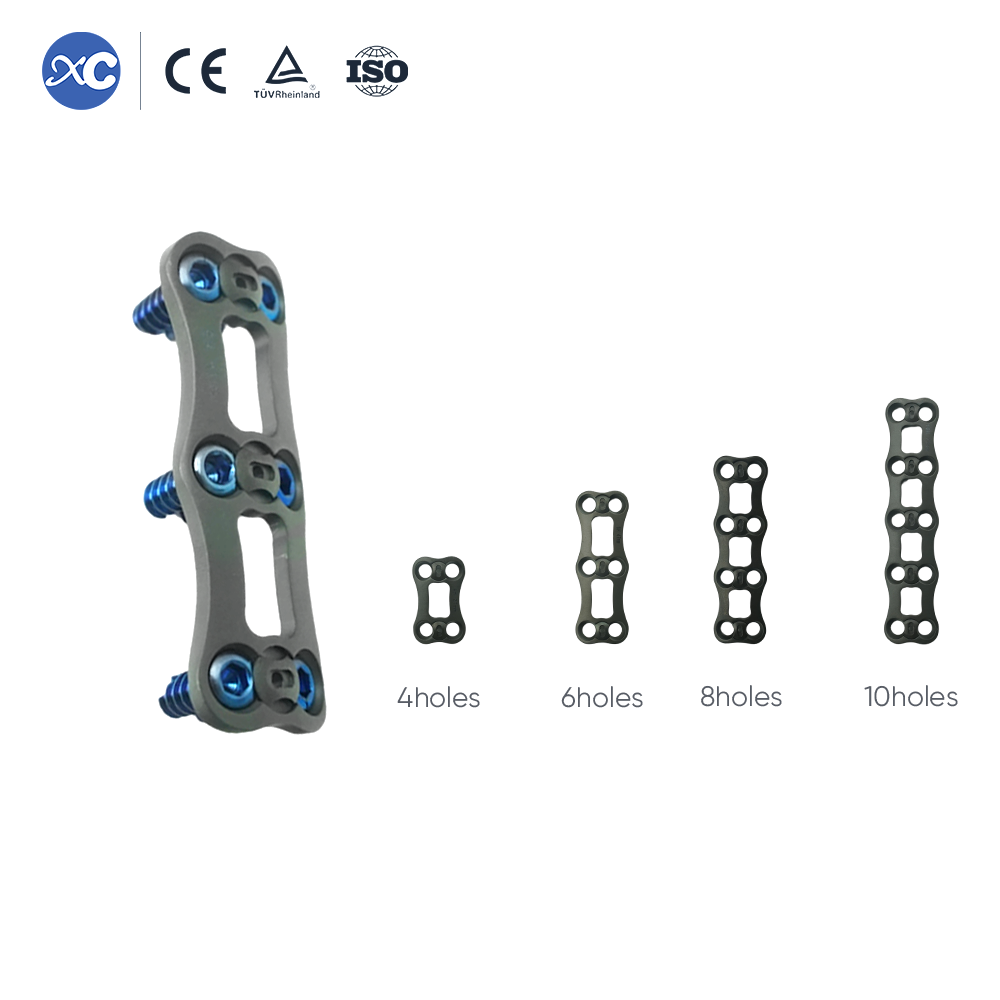

| Available Plate Options | 4 holes, 6 holes, 8 holes, 10 holes |
| Compatible Screw | Anterior Cervical Screw-I |
| Screw Diameter | Ø4.0 mm / Ø4.5 mm |
| Screw Length | 13–16 mm, 1 mm increments |
| Material | Titanium alloy conforming to GB/T 13810-2017 |
| Surface Treatment | Anodizing, electropolishing, matte / mirror finishing |
| Sterilization | EO Sterile Available |
| Certifications | CE Marked ISO 13485 Medical Devices Quality Management System |
Design Features
- Anatomical Curvature Design: Conforms to the anatomical curvature of the cervical spine for a better fit.

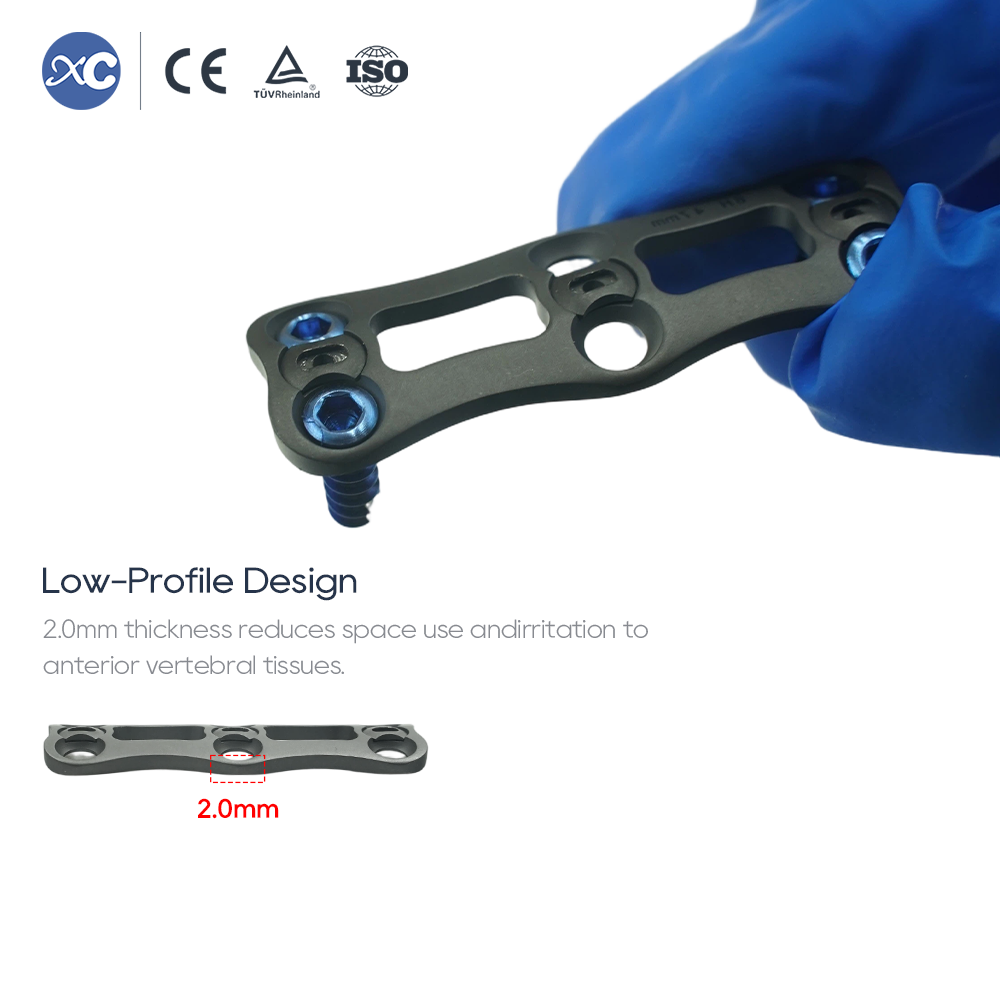

- Low-Profile Design: 2.0 mm thickness helps reduce space use and irritation to anterior vertebral tissues.
- Smooth Rounded Edges: Designed to minimize physiological irritation.
- One-Touch Dual-Press Locking: Quick locking structure designed for convenient intraoperative operation.
- Variable-Angle Locking: Allows flexible screw angulation for implantation in different cervical fixation cases.
- Wide Case Compatibility: Multiple plate lengths and screw options support a wide range of clinical applications.

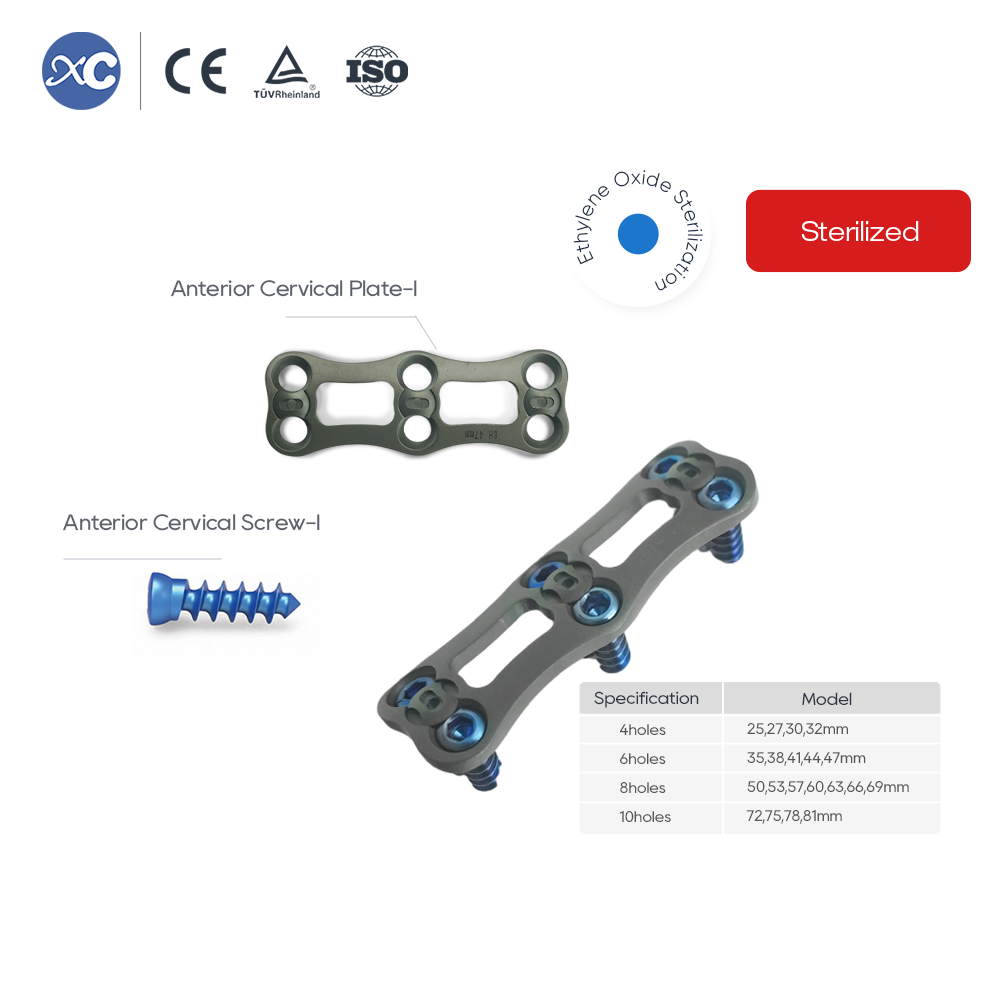

Plate Size & Ordering Chart
| REF | Specification | Holes | Length |
|---|---|---|---|
| RP1JZQ4H25 | 4 holes × 25 mm | 4 | 25 mm |
| RP1JZQ4H27 | 4 holes × 27 mm | 4 | 27 mm |
| RP1JZQ4H30 | 4 holes × 30 mm | 4 | 30 mm |
| RP1JZQ4H32 | 4 holes × 32 mm | 4 | 32 mm |
| RP1JZQ6H35 | 6 holes × 35 mm | 6 | 35 mm |
| RP1JZQ6H38 | 6 holes × 38 mm | 6 | 38 mm |
| RP1JZQ6H41 | 6 holes × 41 mm | 6 | 41 mm |
| RP1JZQ6H44 | 6 holes × 44 mm | 6 | 44 mm |
| RP1JZQ6H47 | 6 holes × 47 mm | 6 | 47 mm |
| RP1JZQ8H50 | 8 holes × 50 mm | 8 | 50 mm |
| RP1JZQ8H53 | 8 holes × 53 mm | 8 | 53 mm |
| RP1JZQ8H57 | 8 holes × 57 mm | 8 | 57 mm |
| RP1JZQ8H60 | 8 holes × 60 mm | 8 | 60 mm |
| RP1JZQ8H63 | 8 holes × 63 mm | 8 | 63 mm |
| RP1JZQ8H66 | 8 holes × 66 mm | 8 | 66 mm |
| RP1JZQ8H69 | 8 holes × 69 mm | 8 | 69 mm |
| RP1JZQ10H72 | 10 holes × 72 mm | 10 | 72 mm |
| RP1JZQ10H75 | 10 holes × 75 mm | 10 | 75 mm |
| RP1JZQ10H78 | 10 holes × 78 mm | 10 | 78 mm |
| RP1JZQ10H81 | 10 holes × 81 mm | 10 | 81 mm |
Compatible Screw Options
| REF | Screw Type | Diameter | Length |
|---|---|---|---|
| RS1JZQ4013 | Anterior Cervical Screw-I | Ø4.0 mm | 13 mm |
| RS1JZQ4014 | Anterior Cervical Screw-I | Ø4.0 mm | 14 mm |
| RS1JZQ4015 | Anterior Cervical Screw-I | Ø4.0 mm | 15 mm |
| RS1JZQ4016 | Anterior Cervical Screw-I | Ø4.0 mm | 16 mm |
| RS1JZQ4513 | Anterior Cervical Screw-I | Ø4.5 mm | 13 mm |
| RS1JZQ4514 | Anterior Cervical Screw-I | Ø4.5 mm | 14 mm |
| RS1JZQ4515 | Anterior Cervical Screw-I | Ø4.5 mm | 15 mm |
| RS1JZQ4516 | Anterior Cervical Screw-I | Ø4.5 mm | 16 mm |

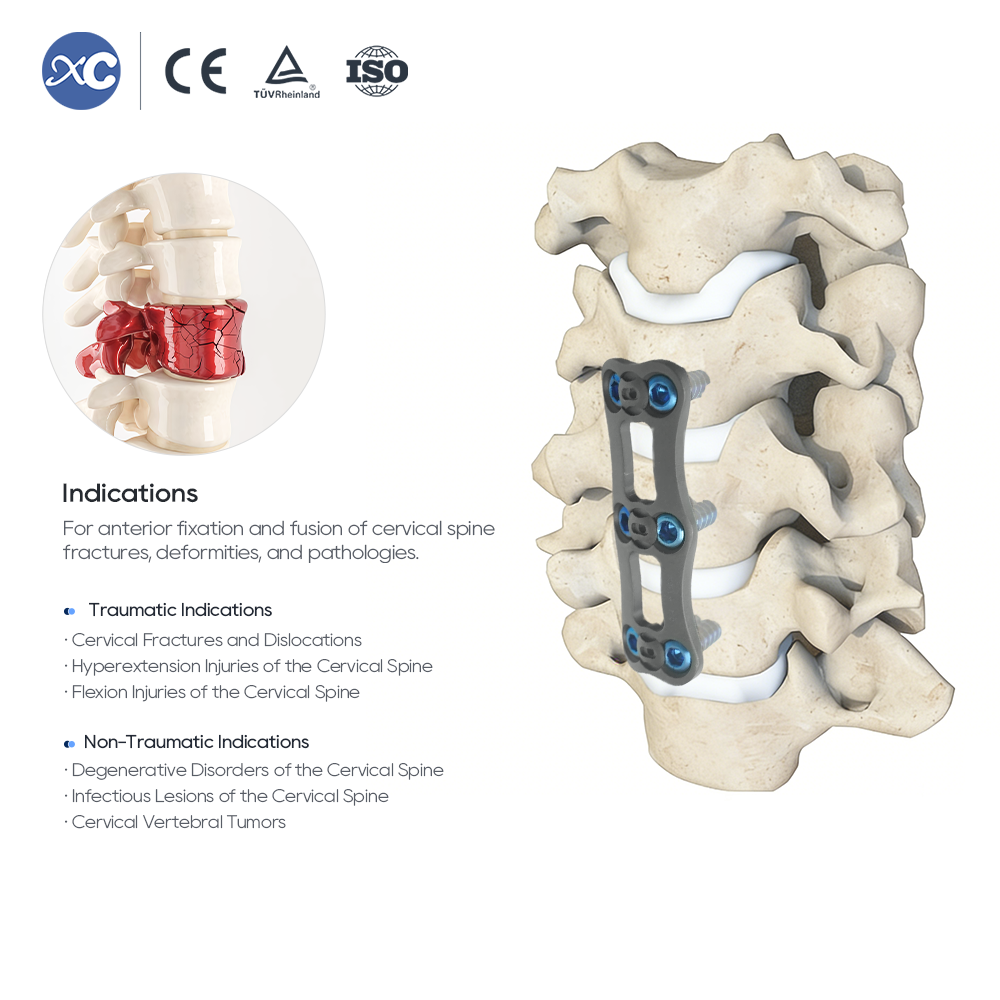

Indications
- Cervical trauma
- Cervical tumors
- Cervical degenerative disc disease
- Cervical deformity
- Cervical fractures and dislocations
- Flexion injuries of the cervical spine
Contraindications
- Severe osteoporosis and cases not described in the indications.
- Cases not requiring bone graft and fusion, or cases where fracture healing is not required.
Material & Quality
- Titanium alloy conforming to GB/T 13810-2017.
- Qualified for TC20 production with excellent mechanical properties.
- Mechanical tests archived for more than 3 years with full process traceability.
- Quality rate ≥98.9% under strict control and improvement system.
Surface & Craftsmanship
- Fine polishing, grinding, and oxidation for consistent color and surface finish.
- CNC turning, milling, and wire EDM processing for precision manufacturing.
- Anodizing, electropolishing, matte and mirror finishing available.
- High-strength joining and meticulous fitting of complex parts.

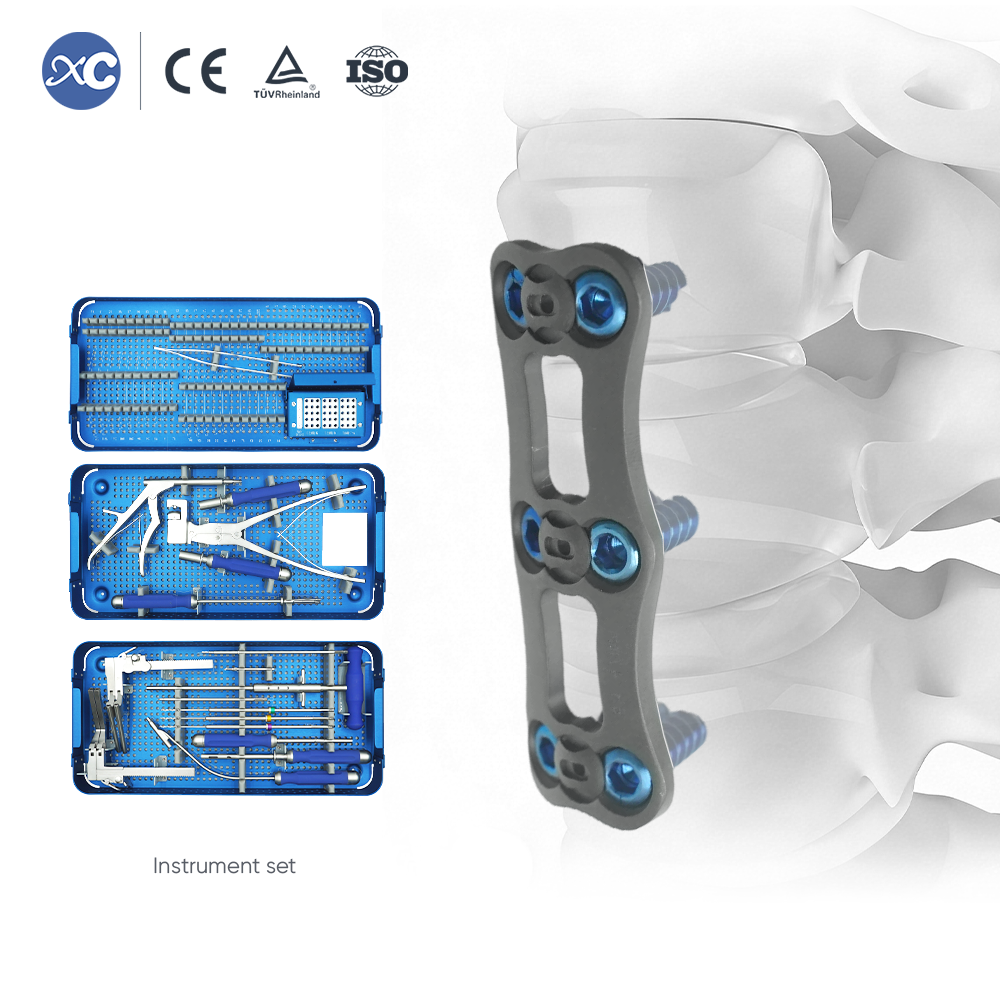

Instrument Set
- Compatible with Anterior Cervical Plate System Instrument Set.
- Dedicated instruments are available for plate positioning, screw preparation, screw insertion, locking, and final fixation.
Related Components
| Component | Description |
|---|---|
| Anterior Cervical Plate-I | 2.0 mm low-profile anatomical anterior cervical fixation plate. |
| Anterior Cervical Screw-I | Compatible Ø4.0 mm and Ø4.5 mm screws, 13–16 mm lengths. |
| Anterior Cervical Plate System Instrument Set | Dedicated instrument set for anterior cervical plate implantation. |
| Cage / Titanium Mesh | Related cervical reconstruction and fusion products. |
This Anterior Cervical Plate-I system combines a 2.0 mm low-profile anatomical plate, smooth rounded edges, variable-angle locking, one-touch dual-press locking, multiple plate length options, and Ø4.0 / Ø4.5 mm screw compatibility for anterior cervical fixation and fusion procedures.
