Lateral Distal Femoral WedgeOsteotomy Plate
Lateral Distal Femoral WedgeOsteotomy Plate
Precio habitual
$79.00 USD
Precio de venta
$79.00 USD
Precio habitual
Envío calculado al finalizar la compra.
Disponible en stock (99)
No se pudo cargar la disponibilidad de recogida
B2B Distribution & Professional Surgical Use Only. This medical implant is strictly restricted to licensed healthcare facilities.

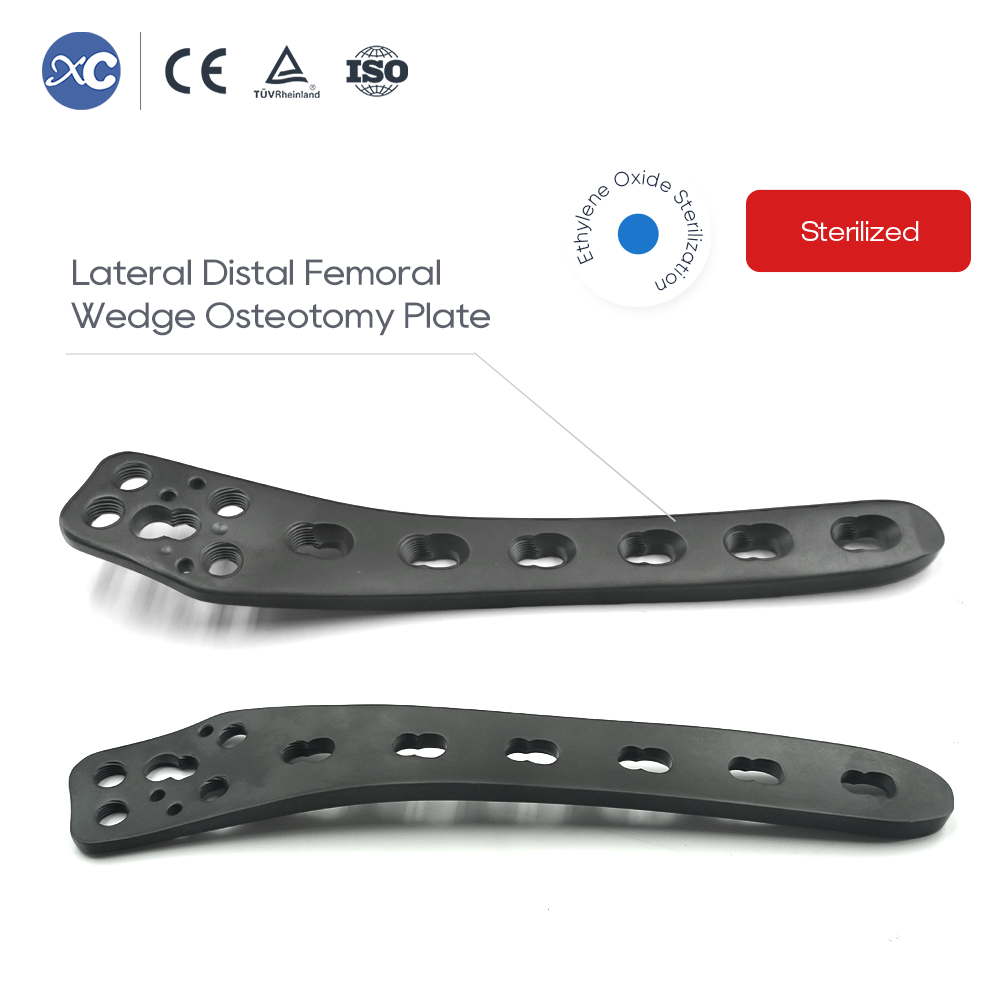

Lateral Distal Femoral Wedge Osteotomy Plate
Sterilized (Ethylene Oxide)
ISO 13485 Certified
CNAS Laboratory Accreditation
CE Compliant
An advanced, anatomically bionic titanium plate engineered specifically for knee-preserving corrective surgeries. Designed for lateral opening wedge distal femoral osteotomies (DFO), this system provides exceptional posterior stability, preserves valuable bone stock, and allows for precise intraoperative fine-tuning of the mechanical axis.
✨ Core Clinical Advantages & Biomechanics
- Low-Profile & Minimally Invasive Design: The tapered plate geometry is specifically adapted for minimally invasive insertion, reducing soft tissue irritation and perfectly aligning with the modern trend of minimally invasive knee preservation.
- Superior Locking Stability: Advanced locking technology ensures rigid, angular stable fixation. It effectively resists structural collapse and loss of correction, significantly reducing the risks of non-union and fixation failure.

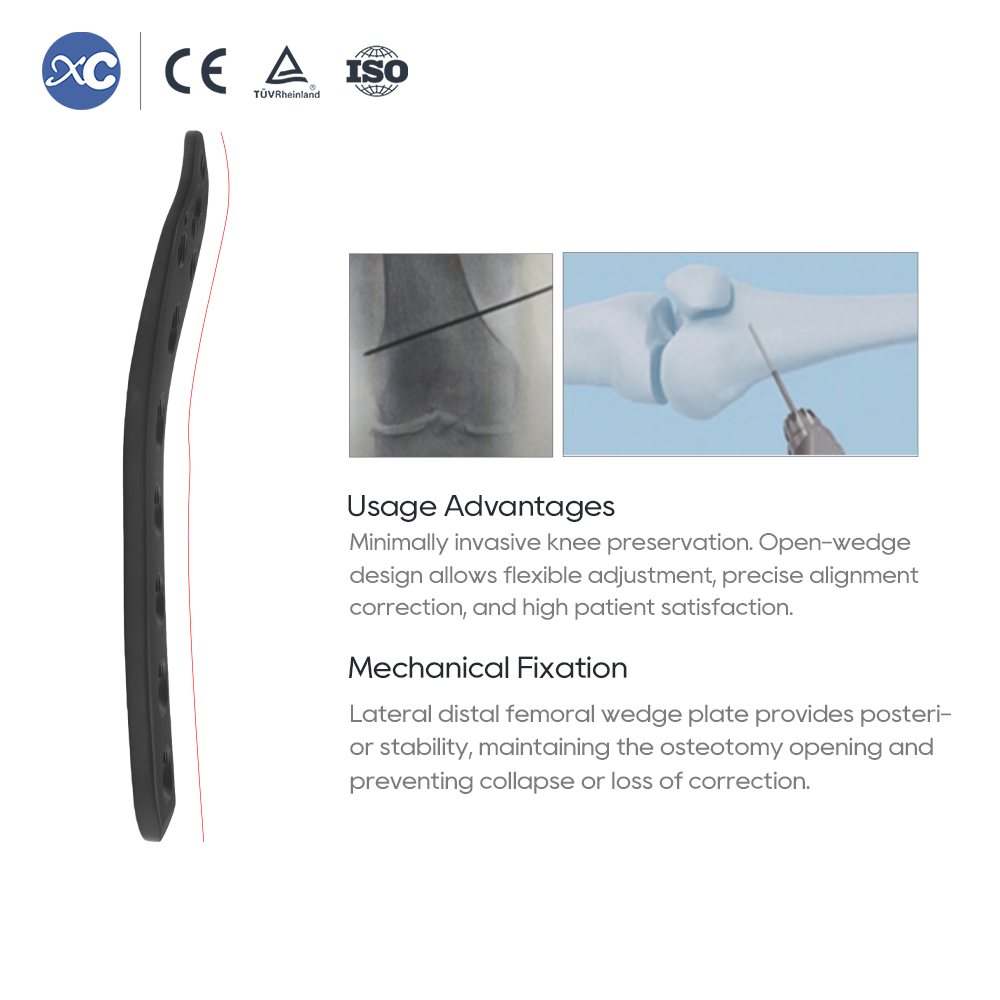

- Optimal Mechanical Fixation: The lateral distal femoral wedge plate provides crucial posterior stability, successfully maintaining the osteotomy opening against dynamic weight-bearing forces.
- Bone Stock Preservation: Compared to closing-wedge alternatives, this open-wedge osteotomy design preserves bone stock without causing limb shortening. It is exceptionally well-suited for addressing femoral-origin deformities.
- Premium TA3G Craftsmanship: Manufactured from TA3G Titanium compliant with GB/T 13810-2017 for excellent mechanical properties. Plates undergo wire-cutting, stamping, sub-micron CNC milling, and advanced anodizing.
🔬 Clinical Indications

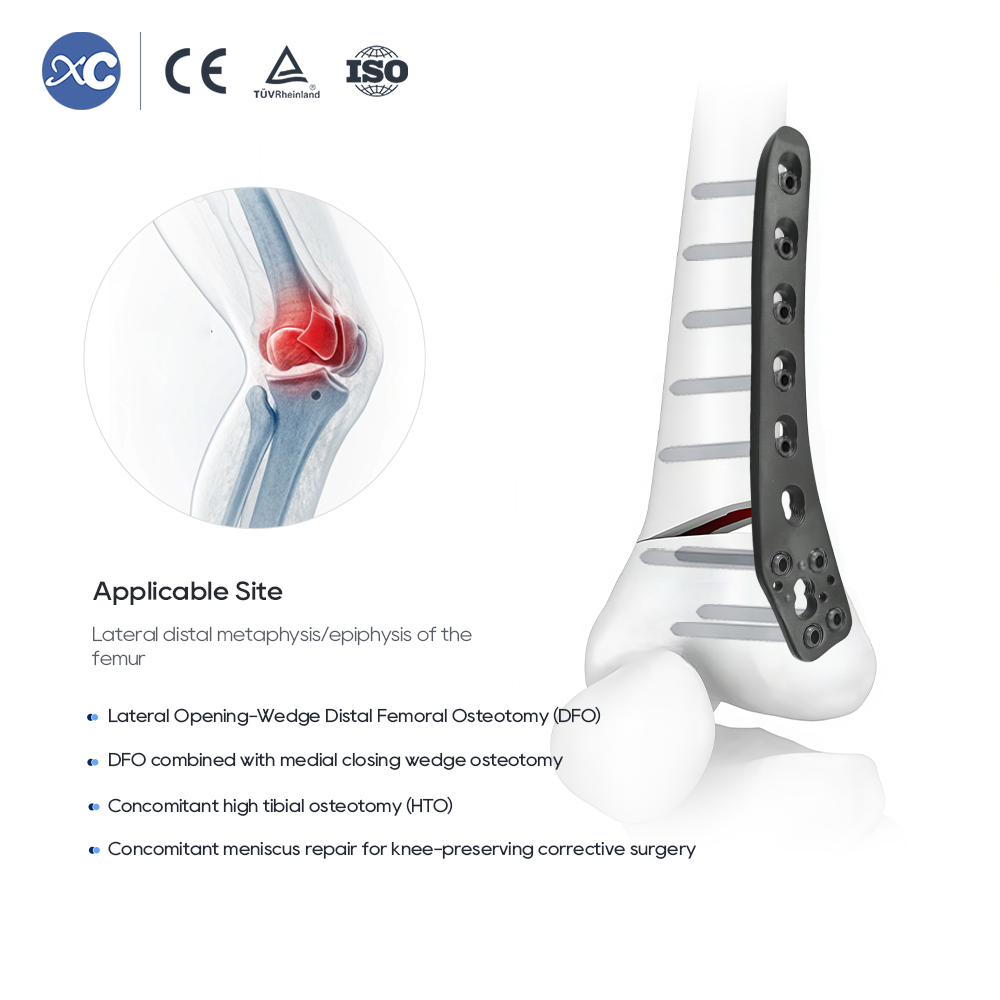

Primarily indicated for deformities of the lateral distal femoral metaphysis.
| Approved Surgical Applications |
|---|
| Lateral opening wedge distal femoral osteotomy (DFO) |
| DFO combined with medial closing wedge osteotomy |
| Concomitant high tibial osteotomy (HTO) |
| Concomitant meniscus repair for comprehensive knee-preserving corrective surgery |
📦 Implant Specification List
Compatible Screws (Stardrive)
| Screw Type | Diameter System |
|---|---|
| Cortical Screw (Stardrive) | 4.5mm |
| Locking Screw (Stardrive) | 5.0mm |
Lateral Distal Femoral Wedge Osteotomy Plates
| Product Code | Specification (Left) | Compatible Screws |
|---|---|---|
| RPG2YXJ3HL | 3 Holes - Left (3HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ4HL | 4 Holes - Left (4HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ5HL | 5 Holes - Left (5HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ6HL | 6 Holes - Left (6HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ7HL | 7 Holes - Left (7HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ8HL | 8 Holes - Left (8HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ9HL | 9 Holes - Left (9HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ10HL | 10 Holes - Left (10HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ11HL | 11 Holes - Left (11HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ12HL | 12 Holes - Left (12HL) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ13HL | 13 Holes - Left (13HL) | 4.5mm Cortical / 5.0mm Locking |
| Product Code | Specification (Right) | Compatible Screws |
|---|---|---|
| RPG2YXJ3HR | 3 Holes - Right (3HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ4HR | 4 Holes - Right (4HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ5HR | 5 Holes - Right (5HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ6HR | 6 Holes - Right (6HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ7HR | 7 Holes - Right (7HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ8HR | 8 Holes - Right (8HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ9HR | 9 Holes - Right (9HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ10HR | 10 Holes - Right (10HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ11HR | 11 Holes - Right (11HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ12HR | 12 Holes - Right (12HR) | 4.5mm Cortical / 5.0mm Locking |
| RPG2YXJ13HR | 13 Holes - Right (13HR) | 4.5mm Cortical / 5.0mm Locking |
📄 Surgical Guidelines & Supply Specifications
- Sterilization State: Implants are supplied pre-sterilized via Ethylene Oxide (EO). Do not use if the sterile barrier packaging is damaged or if the expiration date has passed.
- Fixation Modes: The implant design allows the surgeon to choose between angular stable fixation (using 5.0mm locking screws) and dynamic compression (using 4.5mm cortical screws) based on bone density and fracture/osteotomy characteristics.
- Quality Assurance: Guaranteed ≥98.9% quality rate with rigorous inspection. Mechanical tests are archived for 3+ years ensuring full process traceability.
⚠️ Clinical Precautions & Surgical Notes

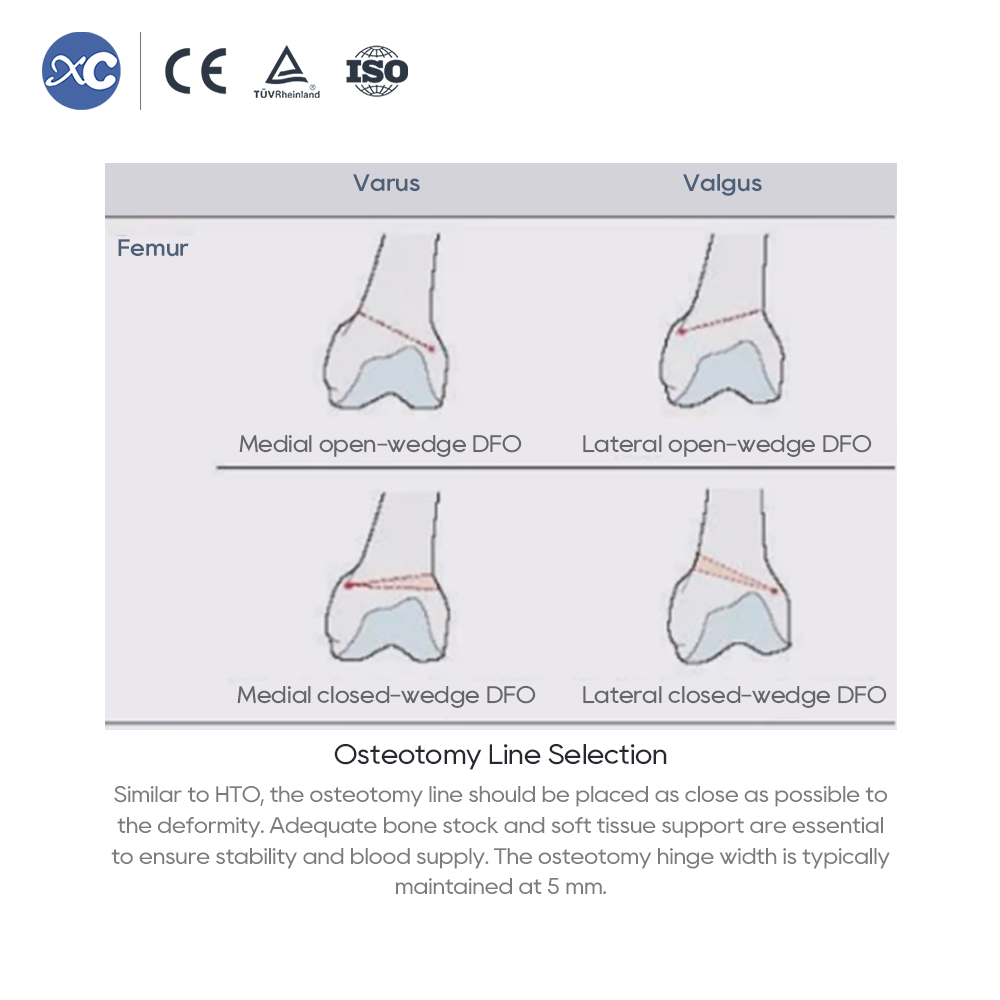

- Osteotomy Line Selection: Similar to High Tibial Osteotomy (HTO), the osteotomy line should be placed as close as possible to the deformity. Adequate bone stock and soft tissue support are absolutely essential to ensure stability and maintain blood supply.
- Hinge Preservation: During the procedure, the medial osteotomy hinge width must typically be maintained at approximately 5 mm to act as a stable fulcrum and prevent hinge fracture.
- Preoperative Planning: Ensure highly accurate mechanical axis alignment and proper distal femoral anatomical angle calculations during preoperative planning to achieve the desired correction and high patient satisfaction.
