PFNA(Gama) Intramedullary Nail
PFNA(Gama) Intramedullary Nail
Precio habitual
$60.00 USD
Precio de venta
$60.00 USD
Precio habitual
Envío calculado al finalizar la compra.
Disponible en stock (99)
No se pudo cargar la disponibilidad de recogida

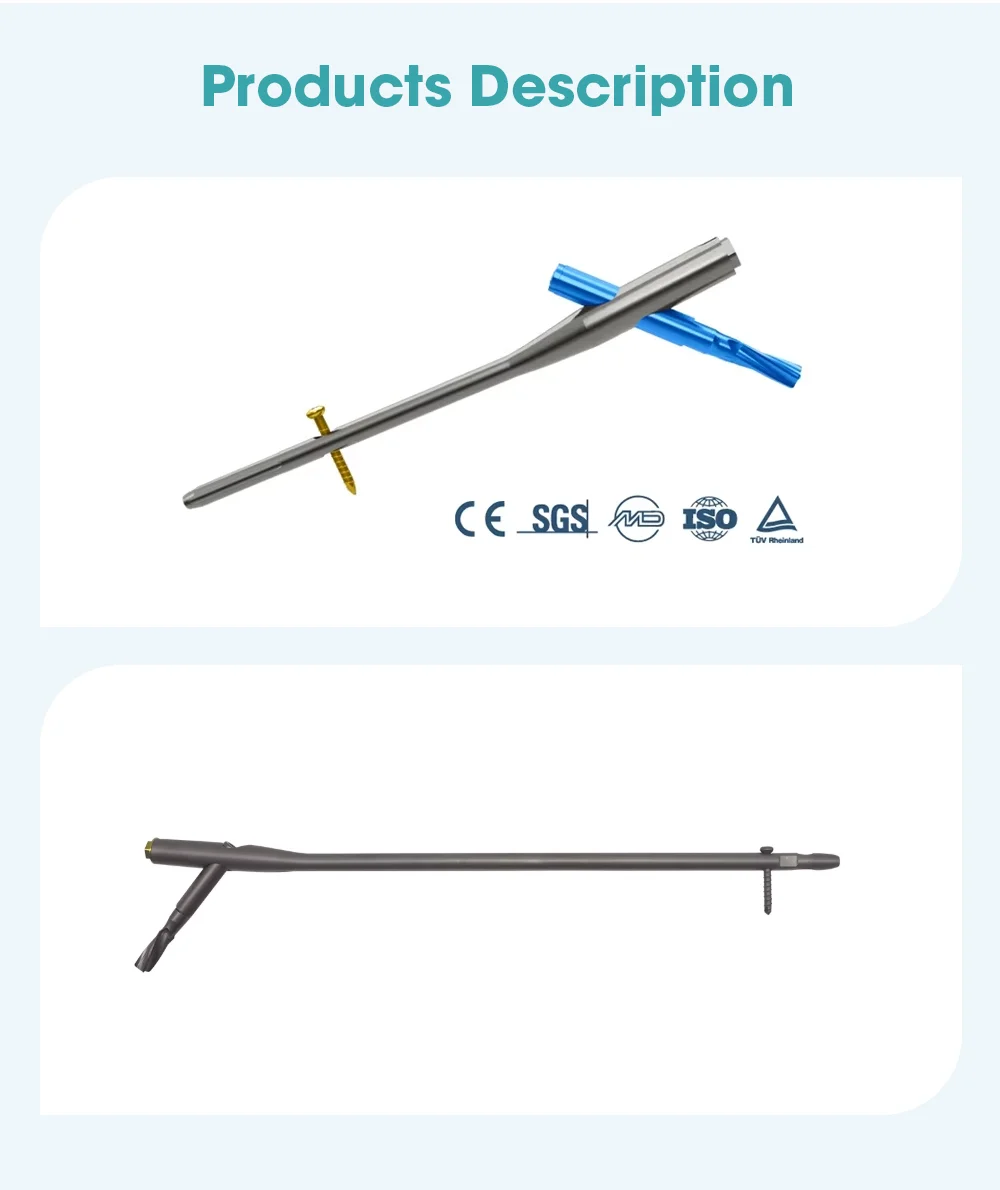

Product Specifications
Product Name
- PFNA Intramedullary Nail
- Cannulated proximal femoral intramedullary nail system for fixation of intertrochanteric and subtrochanteric femur fractures.
Indications
- Pertrochanteric fractures
- Intertrochanteric fractures
- High subtrochanteric fractures
- Low and extended subtrochanteric fractures
- Ipsilateral trochanteric fractures
- Proximal femoral combined and pathological fractures
Core Specification
| Parameter | Specification |
|---|---|
| Anatomical Location | Proximal Femur |
| Nail Type | Cannulated PFNA Intramedullary Nail |
| Nail Length | Short: 180–240 mm Long: 320–440 mm |
| Locking Mechanism | Helical Blade Fixation + Distal Locking Screw Fixation |
| Locking Screw | Ø 4.7 mm Locking Screw |
| Reconstruction Design | 130° Neck-Shaft Angle 6° Lateral Entry Angle Helical Blade Technology |
| Material | Medical Grade Titanium Alloy conforming to GB/T 13810-2017 |
| Surface Treatment | Anodized, Electropolished, Matte / Mirror Finishing |
| Sterilization | EO Sterile Available |
| Certifications | CE Marked ISO 13485 Medical Devices Quality Management System |
Design Features

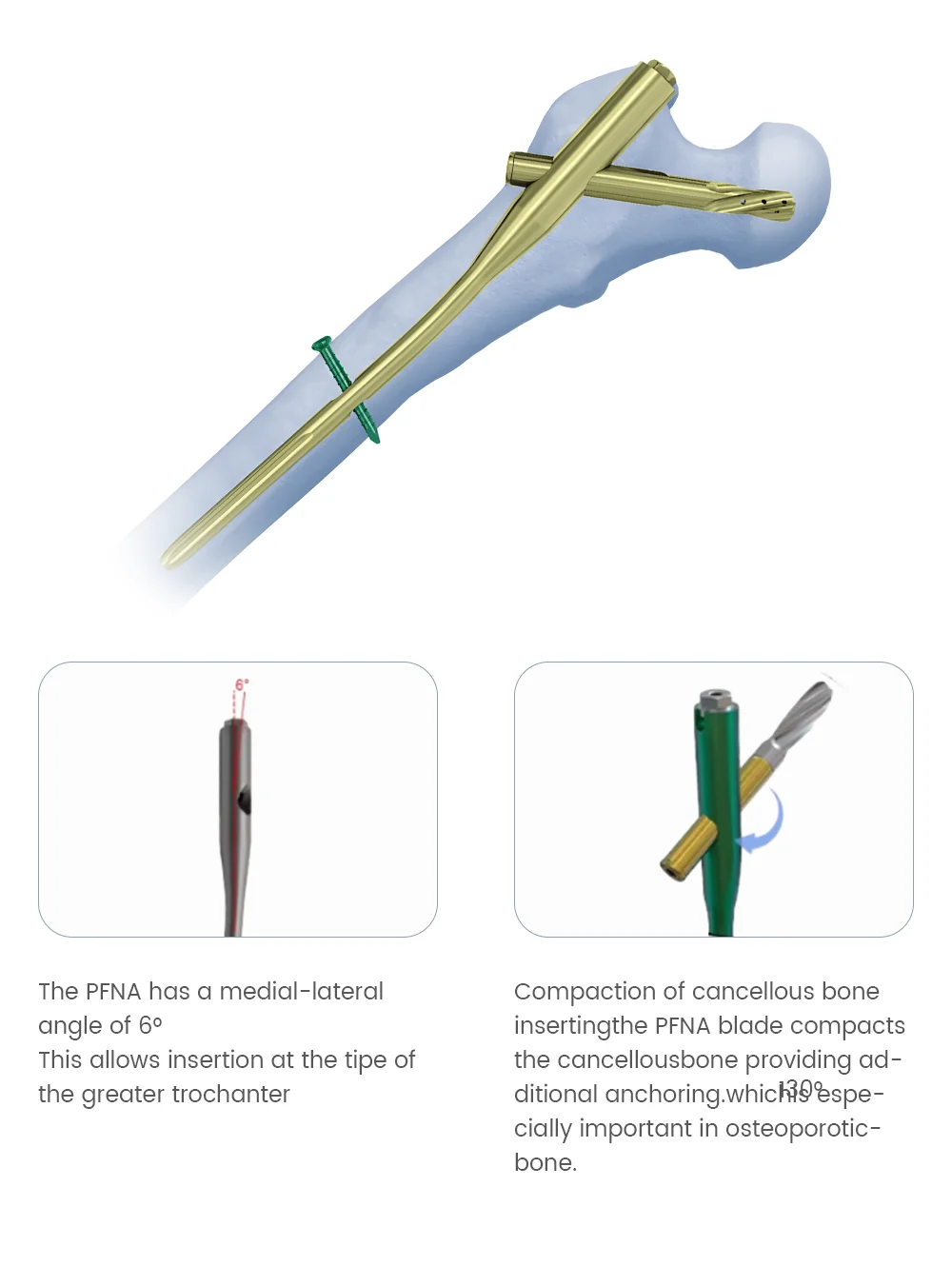

- Helical Blade Design: Designed to improve anchorage in osteoporotic bone and provide anti-rotation support.
- 130° Neck-Shaft Angle: Anatomical proximal femoral design for stable reconstruction fixation.
- 6° Lateral Entry Angle: Designed for minimally invasive insertion through the greater trochanter tip.
- Distal Fluted Design: Helps improve flexibility, ease nail insertion, and reduce distal stress concentration.
- Lateral Flat Cut Design: Simplifies insertion and reduces pressure on the lateral cortex.
Short Nail Applications
- Short nail length range: 180–240 mm
- Pertrochanteric fractures
- Intertrochanteric fractures
- High subtrochanteric fractures
Long Nail Applications
- Long nail length range: 320–440 mm
- Low and extended subtrochanteric fractures
- Ipsilateral trochanteric fractures
- Proximal femoral combined and pathological fractures
Material & Quality
- Titanium alloy conforming to GB/T 13810-2017.
- Qualified for TC20 production with excellent mechanical properties.
- Mechanical tests archived for more than 3 years with full process traceability.
- Quality rate ≥98.9% under strict control and improvement system.
Surface & Craftsmanship
- Fine polishing, grinding, and oxidation for consistent color and surface finish.
- CNC turning, milling, and wire EDM processing for precision manufacturing.
- Anodizing, electropolishing, matte and mirror finishing available.
Instrument Set
- Compatible with PFNA Nail Instrument Set.
- Dedicated instruments are available for nail insertion, blade screw placement, distal locking, and final fixation.
Related Components
| Component | Description |
|---|---|
| Blade Screw | Helical blade component for proximal femoral head fixation. |
| Locking Screw | Ø 4.7 mm locking screw for distal fixation. |
| Nail | Short and long cannulated PFNA nail options available. |
| PFNA Instrument Set | Dedicated instrument set for PFNA nail implantation. |
This PFNA intramedullary nail system is designed for proximal femoral fracture fixation, combining cannulated nail design, helical blade fixation, distal locking, and anatomical reconstruction geometry for different intertrochanteric and subtrochanteric fracture patterns.
| Intramedullary Nail System | |||||
| Product Name | REF Titanium Alloy | Specification | Product Name | REF Titanium Alloy | Specification |
| PFNA(Gama) Intramedullary Nail | RPFNA09180 | Ф9×180 | PFNA(Gama) Intramedullary Nail | RPFNA10320R | Ф10×320 R |
| RPFNA09200 | Ф9×200 | RPFNA10340R | Ф10×340 R | ||
| RPFNA09220 | Ф9×220 | RPFNA10360R | Ф10×360 R | ||
| RPFNA09240 | Ф9×240 | RPFNA10380R | Ф10×380 R | ||
| RPFNA10180 | Ф10×180 | RPFNA10400R | Ф10×400 R | ||
| RPFNA10200 | Ф10×200 | RPFNA10420R | Ф10×420 R | ||
| RPFNA10220 | Ф10×220 | RPFNA10440R | Ф10×440 R | ||
| RPFNA10240 | Ф10×240 | RPFNA10320L | Ф10×320 L | ||
| RPFNA11180 | Ф11×180 | RPFNA10340L | Ф10×340 L | ||
| RPFNA11200 | Ф11×200 | RPFNA10360L | Ф10×360 L | ||
| RPFNA11220 | Ф11×220 | RPFNA10380L | Ф10×380 L | ||
| RPFNA11240 | Ф11×240 | RPFNA10400L | Ф10×400 L | ||
| RPFNA12180 | Ф12×180 | RPFNA10420L | Ф10×420 L | ||
| RPFNA12200 | Ф12×200 | RPFNA10440L | Ф10×440 L | ||
| RPFNA12220 | Ф12×220 | RPFNA11320R | Ф11×320 R | ||
| RPFNA12240 | Ф12×240 | RPFNA11340R | Ф11×340 R | ||
| RPFNA09320R | Ф9×320 R | RPFNA11360R | Ф11×360 R | ||
| RPFNA09340R | Ф9×340 R | RPFNA11380R | Ф11×380 R | ||
| RPFNA09360R | Ф9×360 R | RPFNA11400R | Ф11×400 R | ||
| RPFNA09380R | Ф9×380 R | RPFNA11420R | Ф11×420 R | ||
| RPFNA09400R | Ф9×400 R | RPFNA11440R | Ф11×440 R | ||
| RPFNA09420R | Ф9×420 R | RPFNA11320L | Ф11×320 L | ||
| RPFNA09440R | Ф9×440 R | RPFNA11340L | Ф11×340 L | ||
| RPFNA09320L | Ф9×320 L | RPFNA11360L | Ф11×360 L | ||
| RPFNA09340L | Ф9×340 L | RPFNA11380L | Ф11×380 L | ||
| RPFNA09360L | Ф9×360 L | RPFNA11400L | Ф11×400 L | ||
| RPFNA09380L | Ф9×380 L | RPFNA11420L | Ф11×420 L | ||
| RPFNA09400L | Ф9×400 L | RPFNA11440L | Ф11×440 L | ||
| RPFNA09420L | Ф9×420 L | ||||
| RPFNA09440L | Ф9×440 L | ||||
