Plasma Ablation Electrode
Plasma Ablation Electrode
Precio habitual
$105.00 USD
Precio de venta
$105.00 USD
Precio habitual
Envío calculado al finalizar la compra.
Disponible en stock (99)
No se pudo cargar la disponibilidad de recogida
B2B Distribution & Professional Surgical Use Only. This medical equipment is strictly restricted to licensed healthcare facilities.

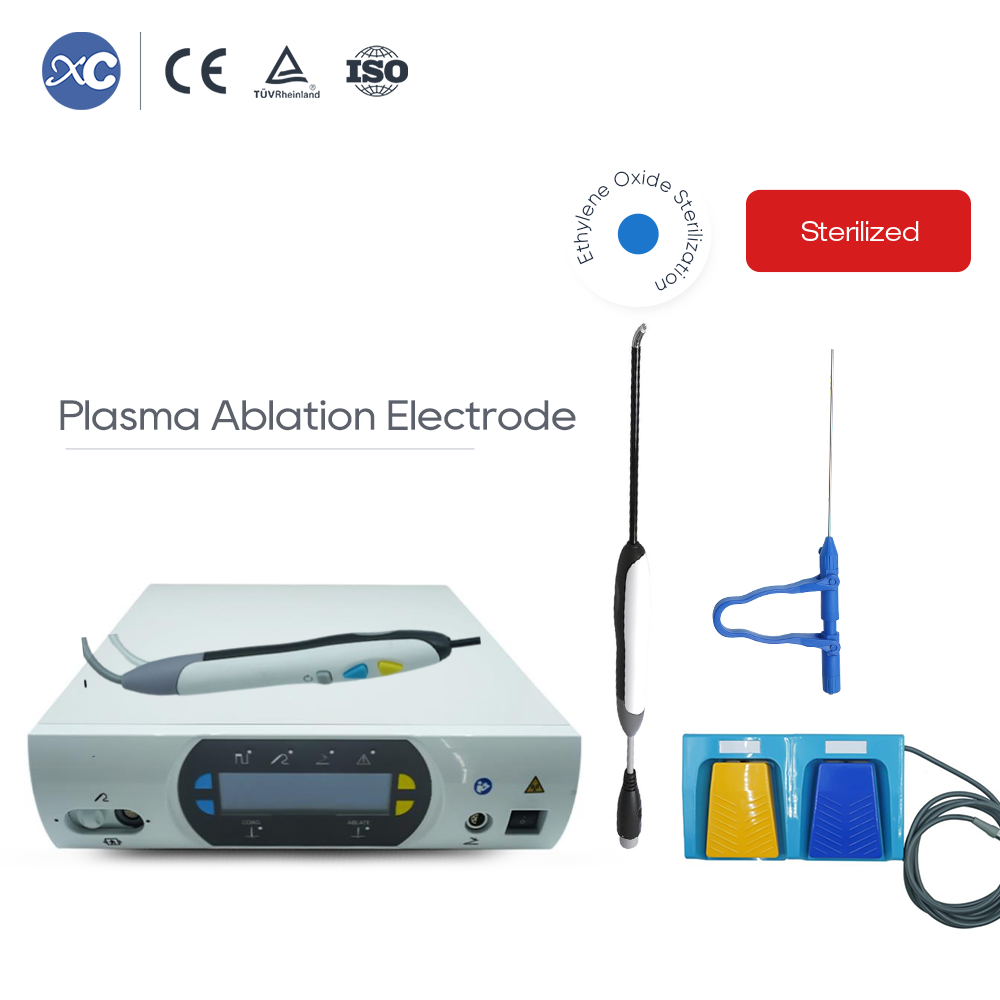

Plasma Ablation Electrode System
Sterilized (Ethylene Oxide)
ISO 13485 Certified
CNAS Laboratory Accreditation
CE / TÜV Rheinland Compliant

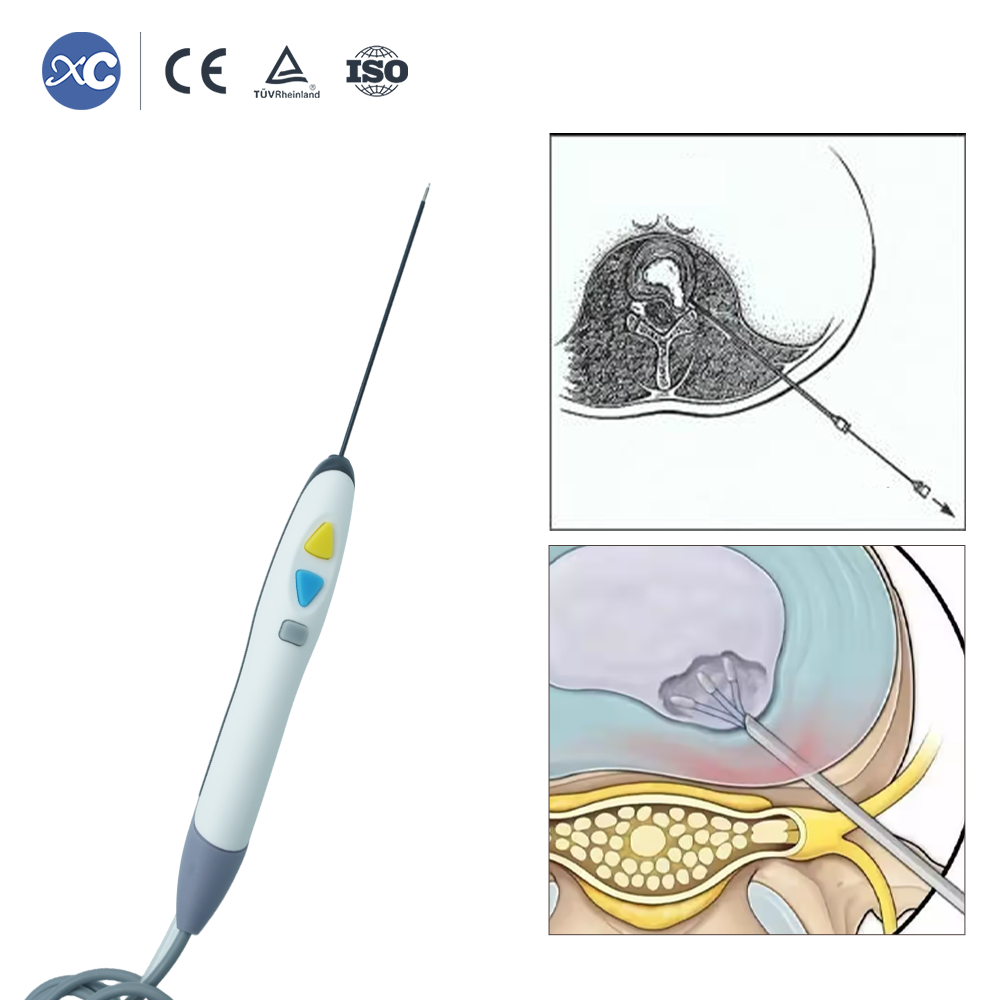

Low-temperature radiofrequency plasma allows nucleus pulposus ablation and coagulation, precise synovial tissue trimming, and is the preferred choice for endoscopic minimally invasive channels.
✨ Core Technical & Clinical Advantages
- Broad Clinical Applications: Spinal and arthroscopic use, high-volume minimally invasive, disposable and safe.
- Improved Surgical Efficiency: Replaces extensive rongeur use, significantly improves surgical efficiency, and achieves high clinical acceptance.
- Enhanced Patient Recovery: Minimal bleeding, reduced postoperative swelling, quick recovery, high patient satisfaction.

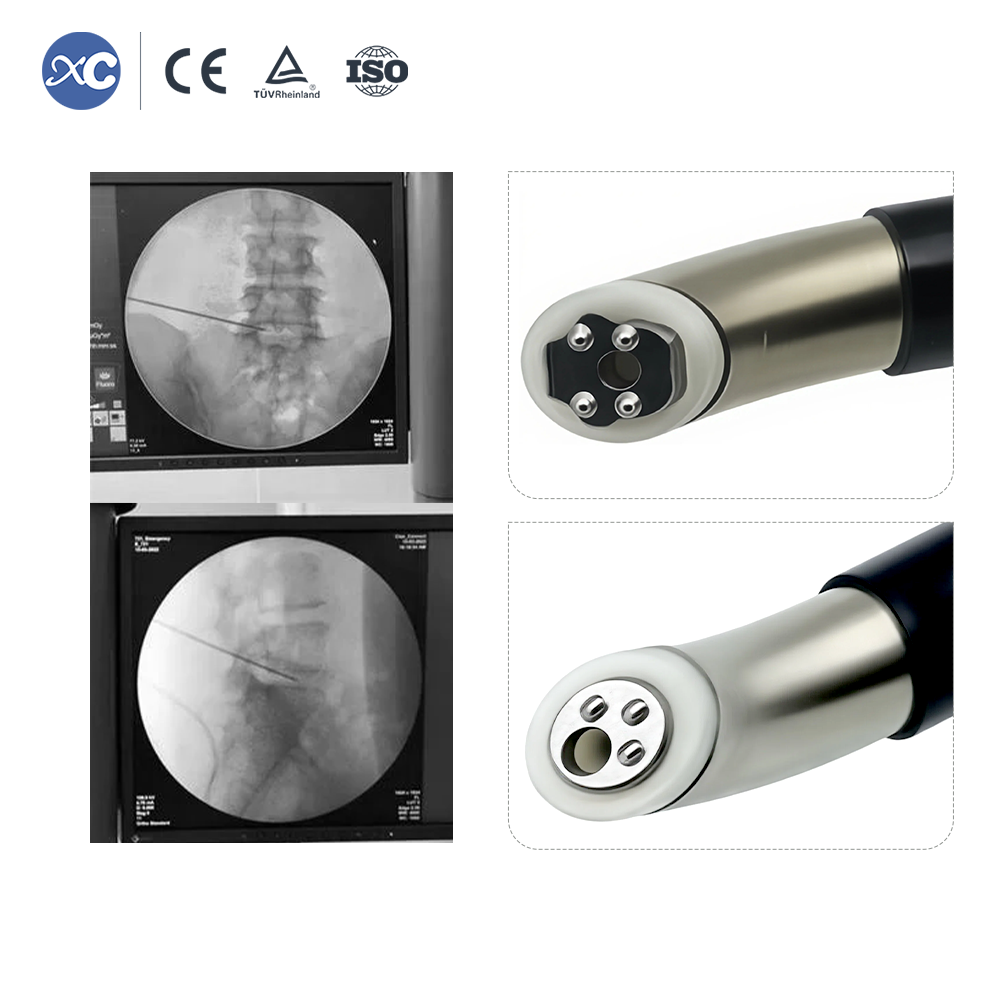

- Premium Craftsmanship & Safety: Features a ceramic ring, an integrated tungsten carbide blade tip, and an anti-detachment design for enhanced durability and safety.
- Comprehensive Product Functions: Capable of low-temperature ablation, precise hemostasis, soft tissue resection and cutting, and nerve pulse modulation.

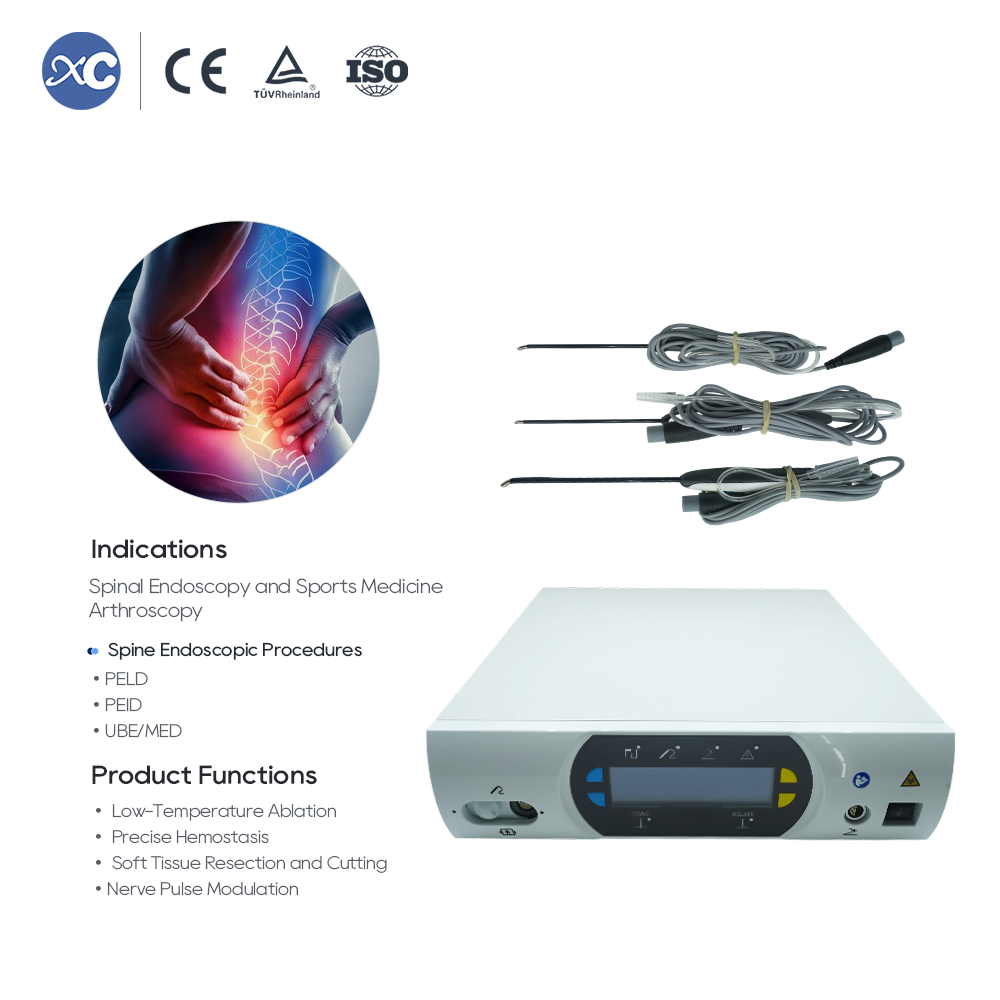

🔬 Clinical Indications
| Spine Endoscopic Procedures |
|---|
| PELD (Percutaneous Endoscopic Lumbar Discectomy) |
| PEID (Percutaneous Endoscopic Interlaminar Discectomy) |
| UBE / MED (Unilateral Biportal Endoscopy / Microendoscopic Discectomy) |
📦 System & Electrode Specification List
Control Units
| REF Code | Component Description |
|---|---|
| XRDJSBSK | Manual Control Handle |

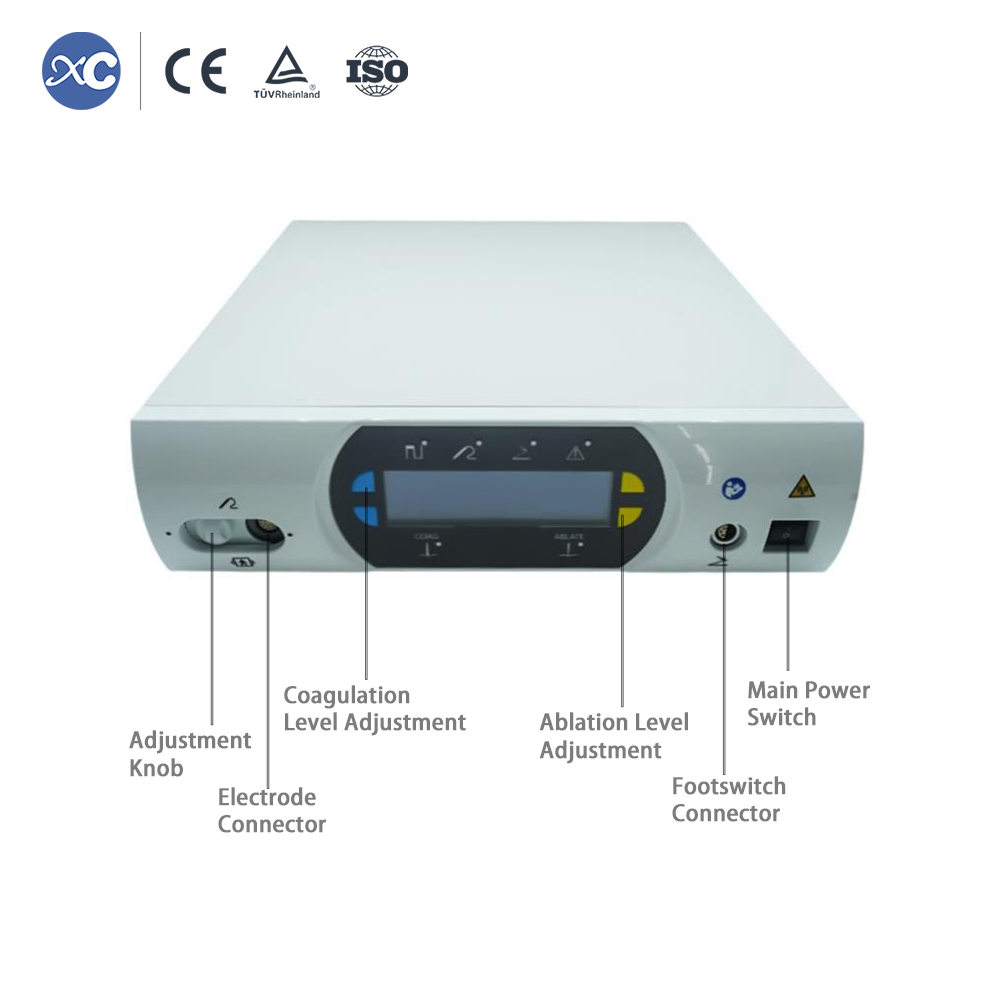

| DLXRDJGDS08P | Main Unit & Foot Control |

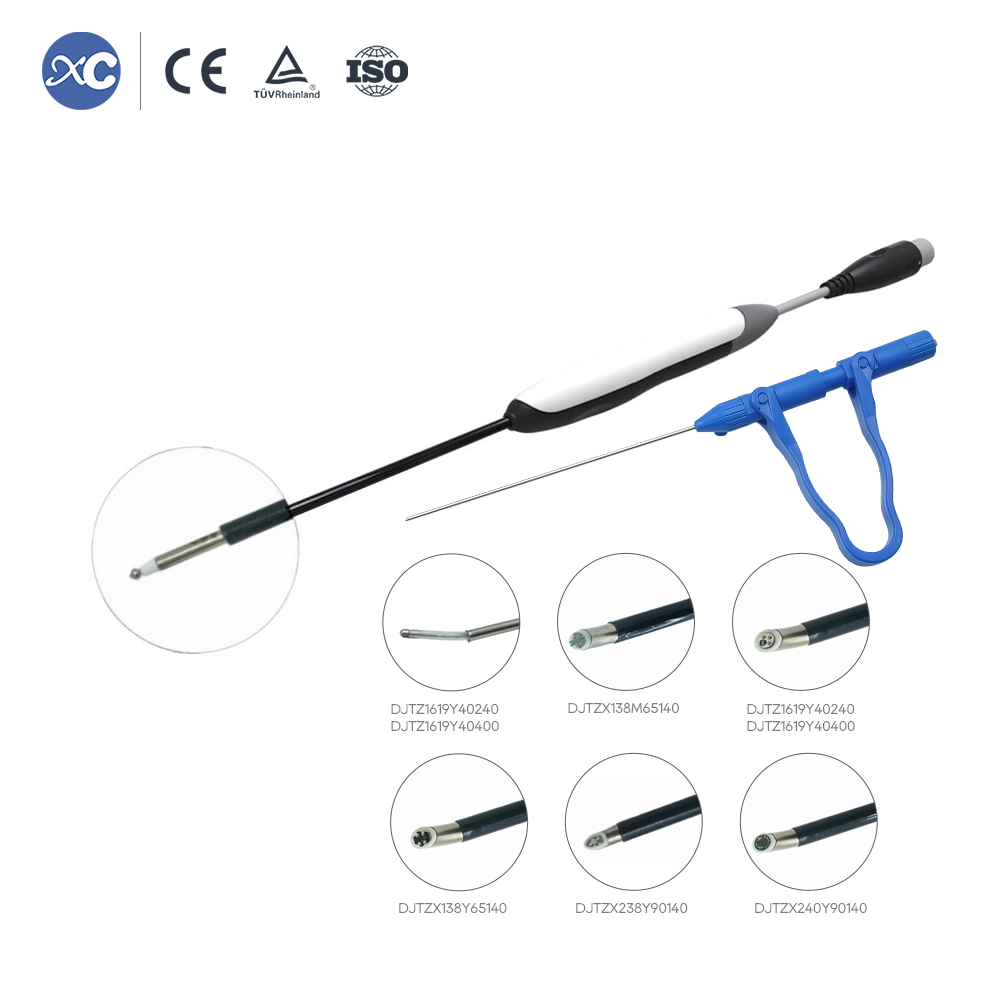

Plasma Consumables - Ablation Electrodes
| REF Code | Specification Details | Control Type |
|---|---|---|
| DJTZ909Z100 | Shaft diameter 0.9, needle-type 0°, 100mm | Foot control |
| DJTZ911SJ220 | Shaft diameter 1.1, needle-type 0°, 220mm | Foot control |
| DJTZ1035G30120 | Shaft diameter 3.5, hook-type 50°, 120mm | Foot control |
| DJTZ1035G30150 | Shaft diameter 3.5, hook-type 50°, 150mm | Foot control |
| DJTZ1035G30280 | Shaft diameter 3.5, hook-type 50°, 280mm | Foot control |
| DJTZ1035G30320 | Shaft diameter 3.5, hook-type 50°, 320mm | Foot control |
| DJTZ1619Y40240 | Shaft diameter 1.9, round 0°, 240mm | Foot control |
| DJTZ1619Y40400 | Shaft diameter 1.9, round 0°, 400mm | Foot control |
| DJTZX611Z140 | Shaft diameter 1.1, needle-type 0°, 140mm | Foot control |
| DJTZX611Z280 | Shaft diameter 1.1, needle-type 0°, 280mm | Foot control |
| DJTZX138M65120 | Shaft diameter 3.8, special shaped 50°, 120mm | Foot control |
| DJTZX138M65140 | Shaft diameter 3.8, special shaped 50°, 140mm | Foot control |
| DJTZX138M65160 | Shaft diameter 3.8, special shaped 50°, 160mm | Foot control |
| DJTZX138Y65120 | Shaft diameter 3.8, round 50°, 120mm | Foot control |
| DJTZX138Y65140 | Shaft diameter 3.8, round 50°, 140mm | Foot control |
| DJTZX138Y65160 | Shaft diameter 3.8, round 50°, 160mm | Foot control |
| DJTZX142Y65120 | Shaft diameter 4.2, special shaped 50°, 120mm | Foot control |
| DJTZX142Y65140 | Shaft diameter 4.2, special shaped 50°, 140mm | Foot control |
| DJTZX142Y65160 | Shaft diameter 4.2, special shaped 50°, 160mm | Foot control |
| DJTZX238Y90140 | Shaft diameter 3.8, special shaped 90°, 140mm | Foot control |
| DJTZX238Y90160 | Shaft diameter 3.8, special shaped 90°, 160mm | Foot control |
| DJTZX238Y90280 | Shaft diameter 3.8, special shaped 90°, 280mm | Foot control |
| DJTZX238Y90320 | Shaft diameter 3.8, special shaped 90°, 320mm | Foot control |
| DJTZX240Y90140 | Shaft diameter 4.0, round 90°, 140mm | Foot control |
| DJTZX240Y90160 | Shaft diameter 4.0, round 90°, 160mm | Foot control |
| DJTZX240Y90240 | Shaft diameter 4.0, round 90°, 240mm | Foot control |
| DJTZX240Y90280 | Shaft diameter 4.0, round 90°, 280mm | Foot control |
📄 Usage Guidelines & Supply Specifications
- Sterilization State: Sterile single-use packaging enables immediate use and eliminates re-sterilization requirements after opening.
- Operational Settings: Adaptable to different surgical procedures with different power control settings.
- Room Turnover: No cleaning, disinfection, or maintenance required, helping improve operating room turnover efficiency.
⚠️ Clinical Precautions & Contraindications
- Strict Contraindication: Contraindicated for patients with cardiac pacemakers.
- Irrigation Requirement: Maintain continuous saline irrigation for cooling to avoid dry burning and tissue injury.
- Single-Use Only: Disposable design prevents cross-contamination risks and supports higher surgical safety standards. Repeated high-temperature sterilization and reuse are strictly prohibited.
