5.5 MIS Spinal System II Pedicle Screw Instrument Set
Instrument Set Only (No Implants)
This product is a dedicated surgical instrument set for the 5.5 mm MIS spinal fixation system. Pedicle screws, rods, cages, and other implants are supplied separately.
This product is a dedicated surgical instrument set for the 5.5 mm MIS spinal fixation system. Pedicle screws, rods, cages, and other implants are supplied separately.
Instrument Type
- Minimally Invasive Spine Surgery Instrument Set
- Designed for MIS-TLIF / UBE-TLIF / PE-TLIF procedures
- Compatible with 5.5 mm MIS Pedicle Screw Systems
Compatible Procedures
- MIS-TLIF
- UBE-TLIF
- PE-TLIF
- PLIF / TLIF
- Percutaneous Lumbar Fusion

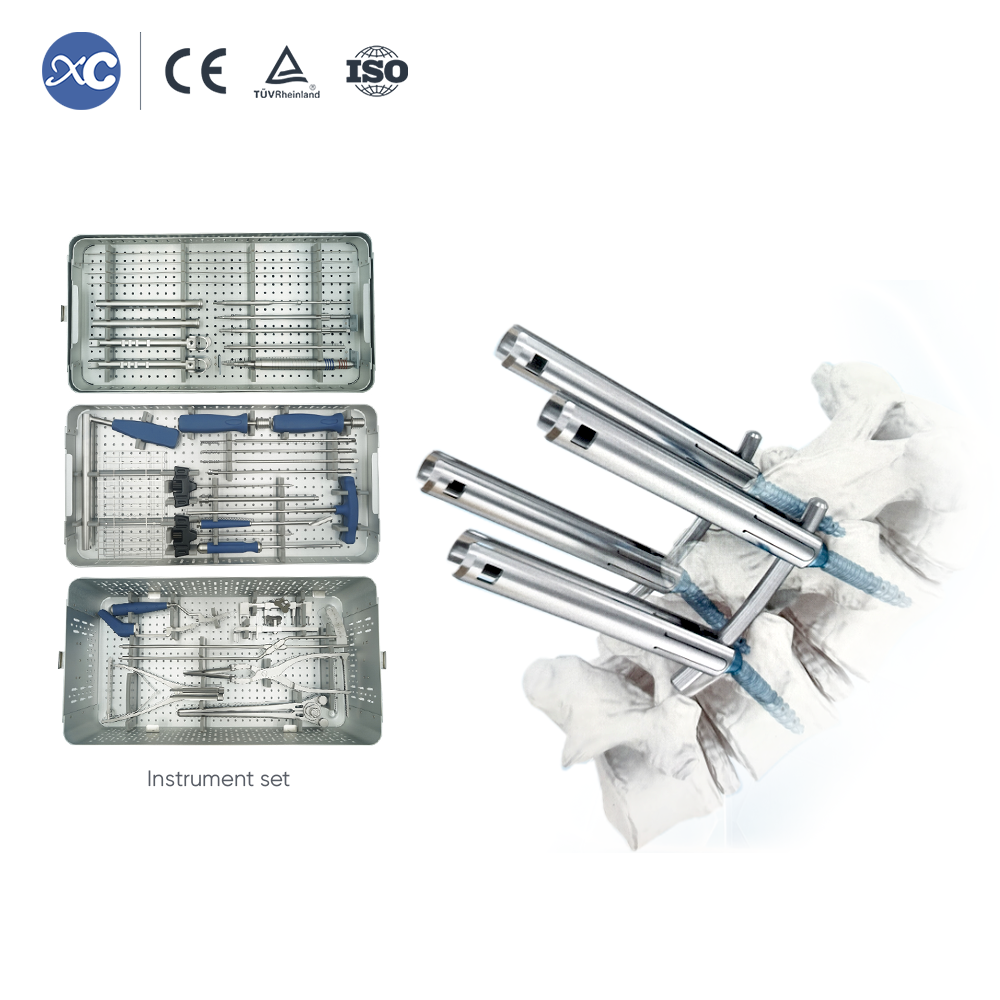

Main Instrument Components
| Instrument | Function |
|---|---|

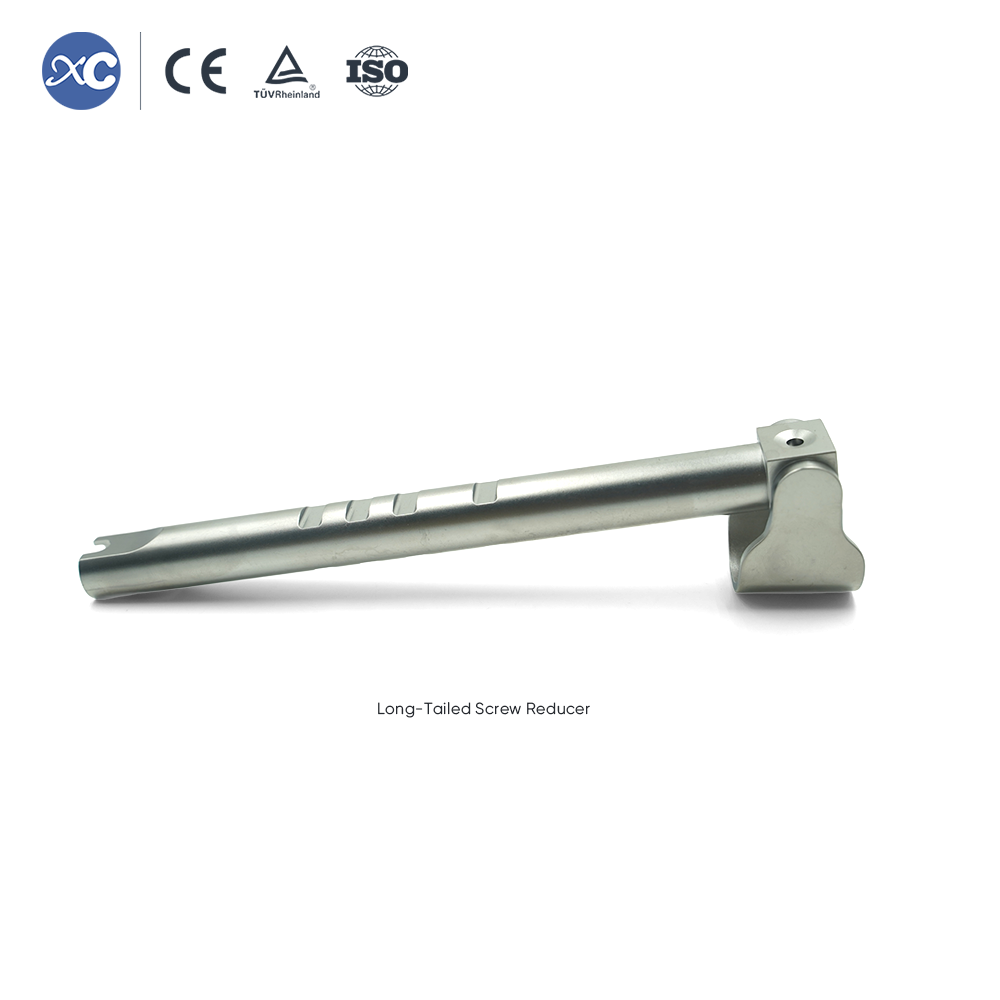

| Long-Tab Reduction Instrument | Vertebral reduction and rod alignment |

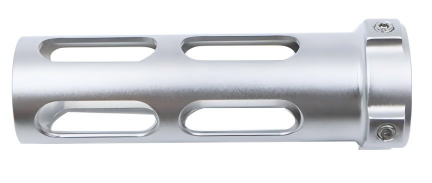

| Expansion Sleeve | Soft tissue dilation and working channel creation |
| Awl | Pedicle entry point preparation |
| Counter Torque Wrench | Protects screw construct during final tightening |
| Distraction Forceps | Segment distraction during reduction |
| Compression–Distraction Forceps | Compression or distraction for spinal correction |
| Taps and Probes | Pedicle canal preparation and verification |
| Rod Inserters and Drivers | Rod delivery and implant assembly |

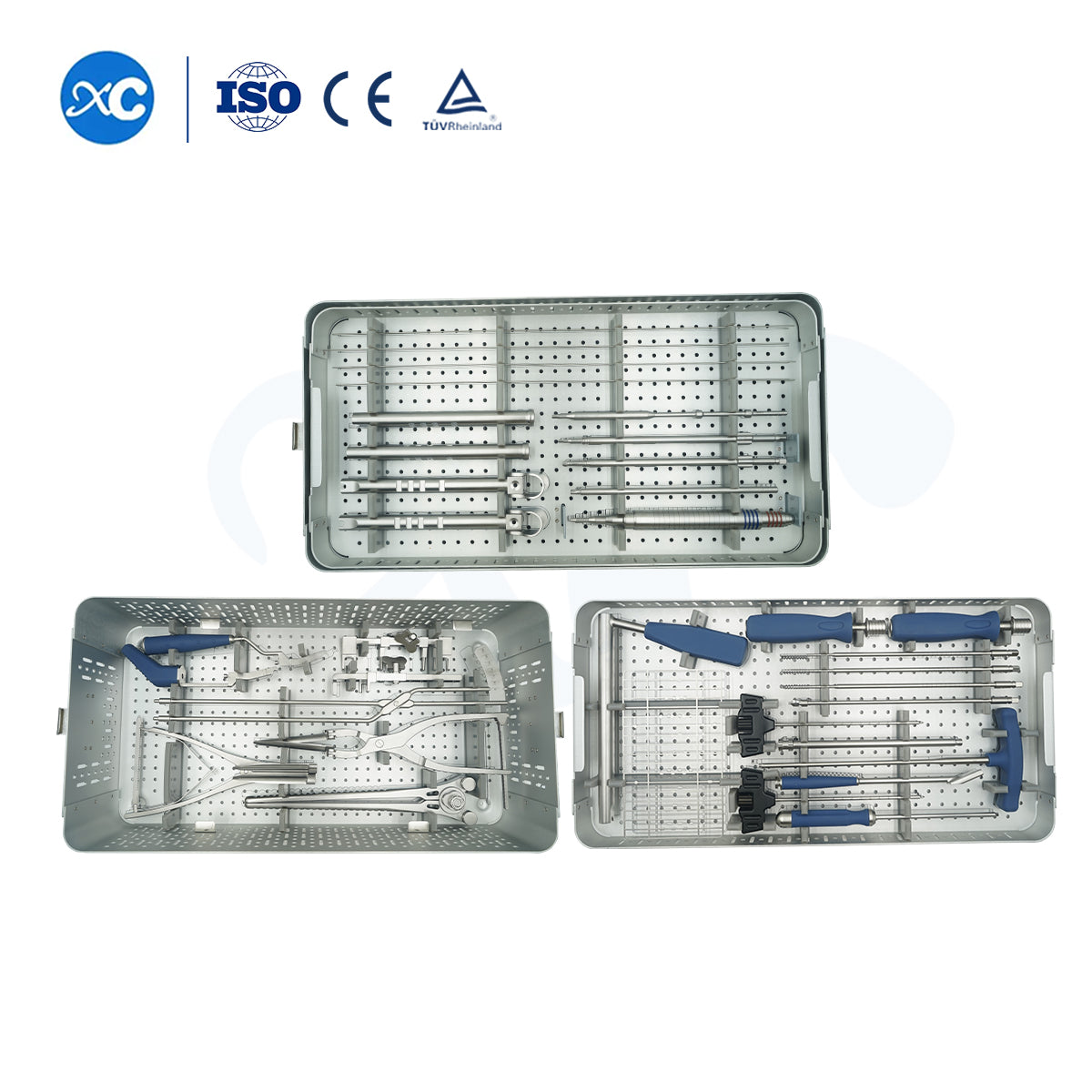

| Sterilization Trays | Instrument storage and sterilization |

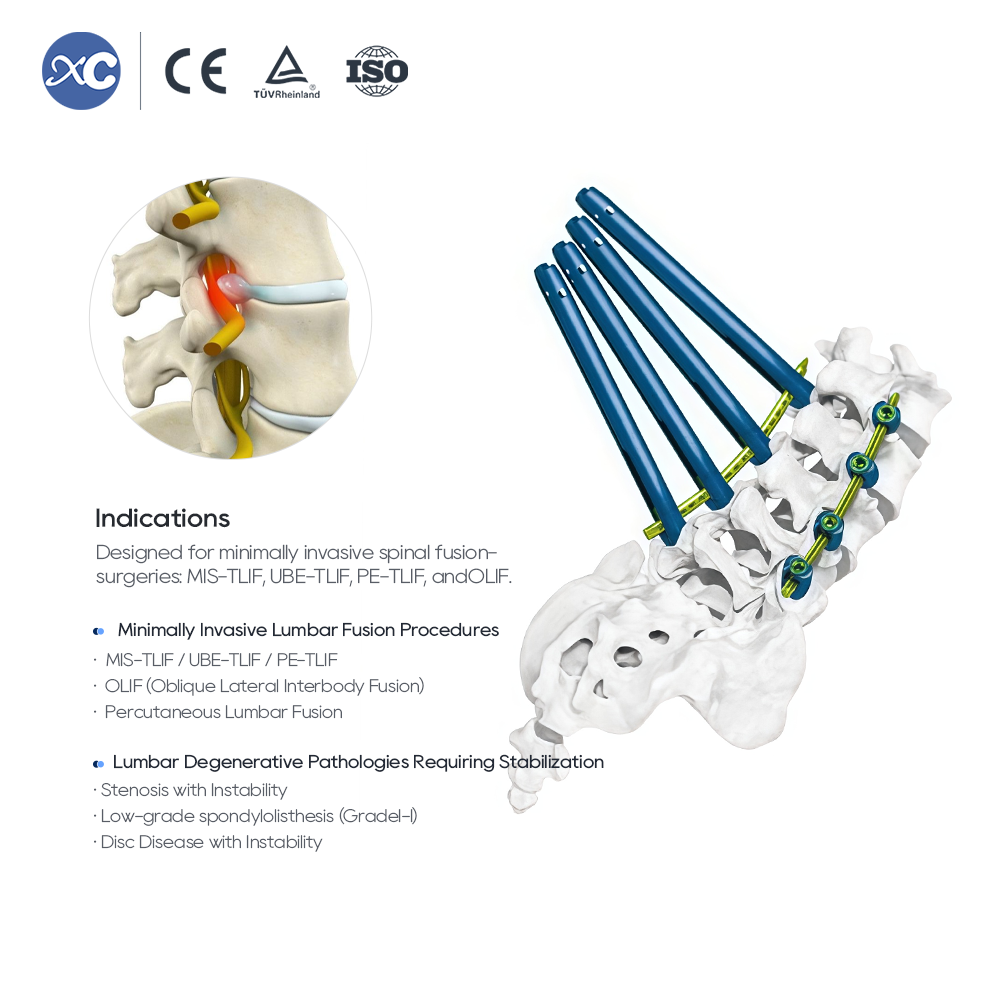

Clinical Applications
| Procedure Category | Indications |
|---|---|
| Minimally Invasive Lumbar Fusion | MIS-TLIF / UBE-TLIF / PE-TLIF |
| Percutaneous Stabilization | Lumbar instability and fixation procedures |
| Degenerative Conditions | Disc degeneration, spinal stenosis |
| Spondylolisthesis | Grade I–II lumbar spondylolisthesis |
| Revision Surgery | Implant failure and revision stabilization |
Compatible Implant Systems
| Implant | Compatibility |
|---|---|
| MIS Polyaxial Pedicle Screw | Compatible |
| 5.5 MIS System II Pedicle Screw | Compatible |
| Cement-Augmented Fenestrated Screw | Compatible |
| 5.5 mm Curved Rod System | Compatible |
| TLIF / PLIF Cage Systems | Compatible |
Material & Manufacturing
- Manufactured from medical-grade stainless steel and titanium alloy components.
- CNC machining for dimensional accuracy and repeatability.
- Electropolished and passivated surfaces for corrosion resistance.
- Fully autoclavable sterilization trays.
- Traceable production and quality control system.
Important Notice
- This product is an instrument set only.
- No pedicle screws included.
- No rods included.
- No cages included.
- No crosslinks included.
- Implants must be ordered separately according to surgical requirements.
Standard Instrument Configuration
| No. | REF | Description | Qty. |
|---|---|---|---|
| 1 | RQJSTZ | Double-Head Probe | 1 |
| 2 | RQJYTZ | Single-head Probe (Stiff) | 1 |
| 3 | RQ5JSZ45 | Tap 4.5 | 1 |
| 4 | RQ5JSZ55 | Tap 5.5 | 1 |
| 5 | RQ5JSZ65 | Tap 6.5 | 1 |
| 6 | RQ5JSZ75 | Tap 7.5 | 1 |
| 7 | TYMB55200G | Mould Rod 200 | 1 |
| 8 | RQ5JHSW35 | Crosslink Screwdriver SW3.5 | 1 |
| 9 | RQ5JDWZDQ | Screw Tab Breaker | 1 |
| 10 | RQ5JZHSW35 | Self-retaining Crosslink Screwdriver SW3.5 | 1 |
| 11 | RQ5JYJT27 | Holding Screwdriver T27 | 1 |
| 12 | RQ5JTWQL | In-situ Rod Bender (L) | 1 |
| 13 | RQ5JTWQR | In-situ Rod Bender (R) | 1 |
| 14 | RQJZKLQ32 | 3.2 Pedicle Probe | 1 |
| 15 | RQJWKLQ | Curved Pedicle Probe | 1 |
| 16 | RQ5JZSJT27 | Tightening Screwdriver T27 | 1 |
| 17 | RQJQXZ | Ball-type Fixation Pin | 4 |
| 18 | RQJZXZ | Pillar-type Fixation Pin | 4 |
| 19 | RQ5JHCLC | Crosslink Measurement | 1 |
| 20 | RQ5JLDCLC | Screw Measurement | 1 |
| 21 | RQ5JHCBQ | Crosslink Rod Holding Forceps | 1 |
| 22 | RQ5JYSQ | Compressor | 1 |
| 23 | RQ5JCKQ | Spreader | 1 |
| 24 | RQ5JZBQ | Rod Twister (Double-joint) 5.5 | 1 |
| 25 | RQ5JDKBS | Counter Sleeve | 1 |
| 26 | RQ5JTKSBSF | T-handle Quick Coupling Handle | 1 |
| 27 | RQ6JXBSW5 | Rod Twist Wrench SW5.0 | 1 |
| 28 | RQ5JKLZ | AWL | 1 |
| 29 | RQJWBQG | Rod Bender (Silicone Handle) | 1 |
| 30 | RQ5JCYBQ | C-type Rod Persuader | 1 |
| 31 | RQJXZQ | Fixation Pin Holder | 1 |

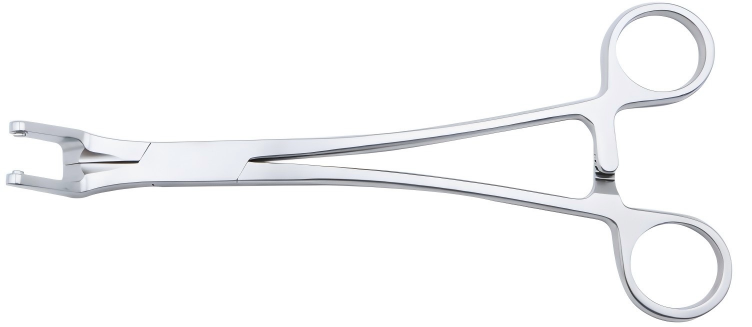

| 32 | RQ5JCBQ | Rod Holding Forceps | 1 |
| 33 | RQJZKSBSF | Straight Quick Coupling Handle (Square Connection) | 1 |
| 34 | RQ5JSDQW | Screwdriver for Polyaxial Screw | 1 |
| 35 | RQ5JSDQD | Screwdriver for Monoaxial Screw | 1 |

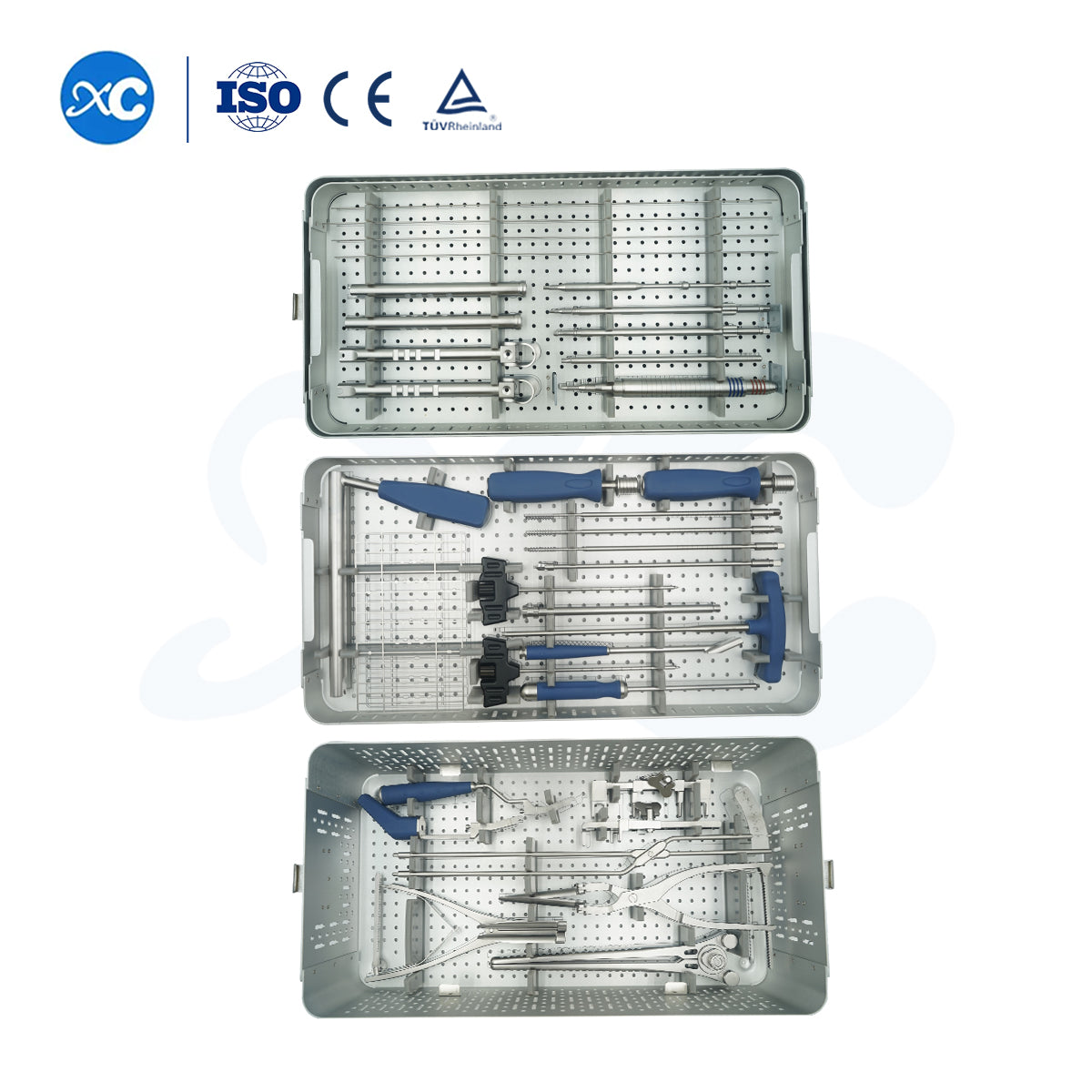

| 36 | RQ5JMJHL | Instrument Box | 1 |
Optional Instruments
| No. | REF | Description | Qty. |
|---|---|---|---|
| 1 | RQ5JCTT | Sleeve (5.5, Long) | 1 |
| 2 | RQ5JWFQ | Frog Reduction Forceps | 1 |

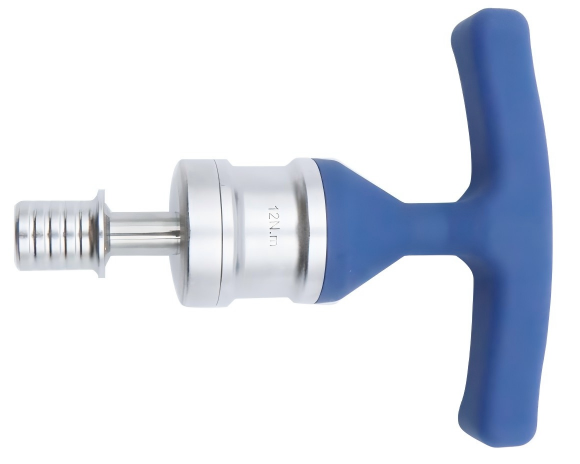

| 3 | RQJ12NMSF | 12 N·m Torque Wrench | 1 |

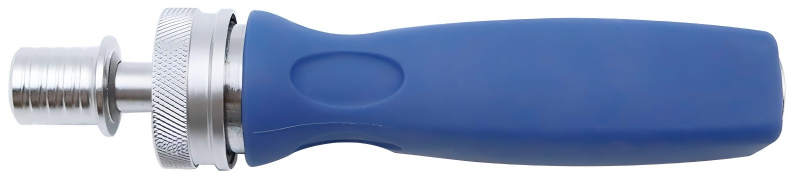

| 4 | RQJJLSF | Ratchet Handle | 1 |
| 5 | RQ5JCWYBQ | Rod Pushing Forceps | 1 |
