Micro Fragment General Instrument Set
Micro Fragment General Instrument Set
Regular price
$399.00 USD
Sale price
$399.00 USD
Regular price
Shipping calculated at checkout.
Available in stock (99)
Couldn't load pickup availability
Micro Fragment General Instrument Set Specifications
Product Overview

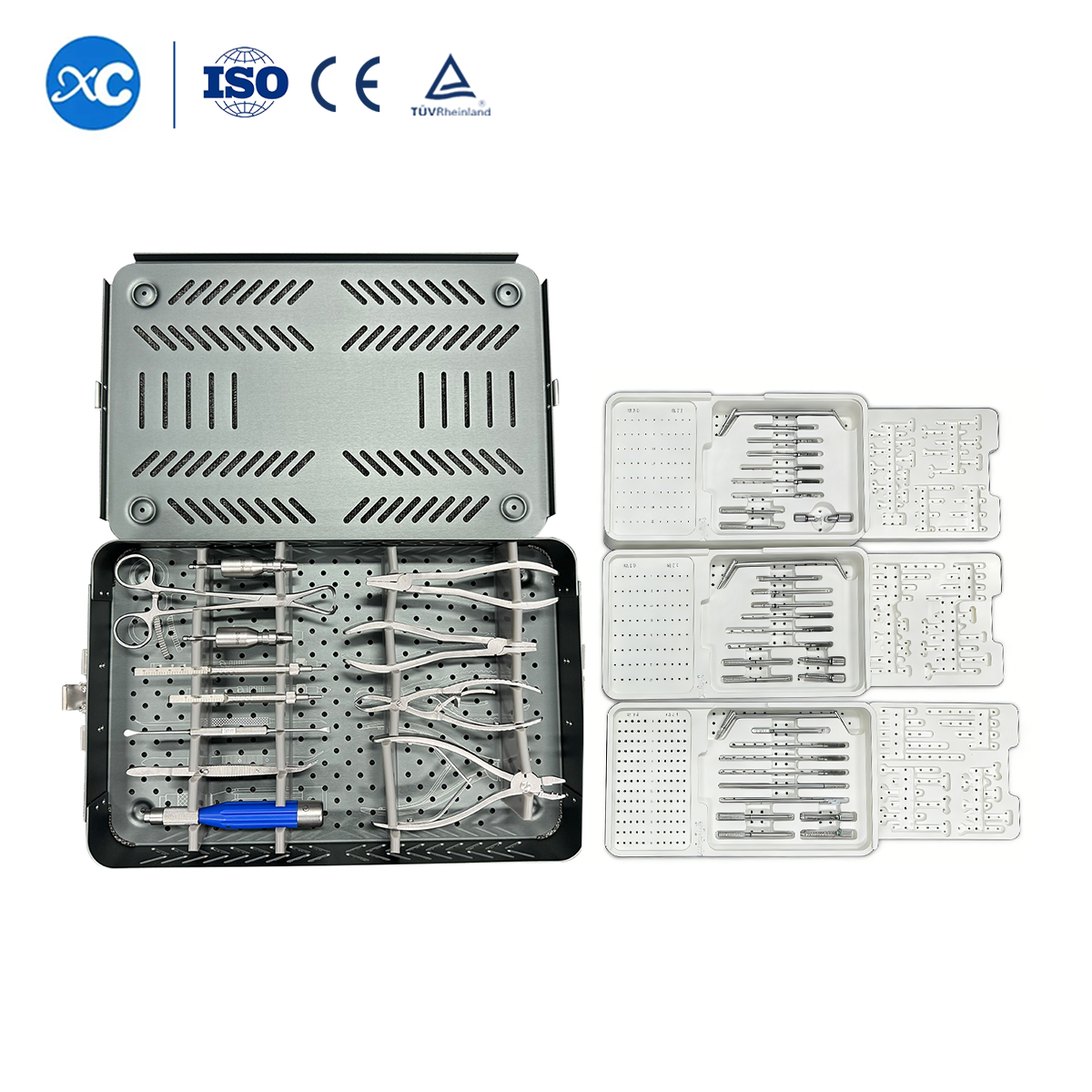

The Micro Fragment General Instrument Set is designed for 1.5 mm, 2.0 mm and 2.4 mm micro fragment locking plate systems. It provides dedicated instruments for reduction, contouring, screw measurement, screw insertion, K-wire cutting and small bone fixation procedures.
Indications & Clinical Application
- Proximal phalanx fractures
- Middle phalanx fractures
- Metacarpal shaft fractures
- Metacarpal neck fractures
- Closed comminuted fractures
- Open fractures, including Gustilo type I or II
- Nonunion or malunion fixation support
Compatible Systems
- 1.5 mm Micro Fragment
- 2.0 mm Micro Fragment
- 2.4 mm Micro Fragment
- Locking Screws
- Cortical Screws
Core Advantages
- Ultra-Minimally Invasive: Supports small incision procedures for micro fragment fixation.
- Low-Profile System: Suitable for small bone and periarticular fracture applications.
- Multi-Angle Locking: Supports stable fixation and pullout resistance for micro locking systems.
Compatible Screw Systems
| System | Screw Type | Length Range | Increment |
|---|---|---|---|
| 1.5 mm | Locking / Cortical Screw | 6–20 mm | 5 mm |
| 2.0 mm | Locking / Cortical Screw | 6–30 mm | 5 mm |
| 2.4 mm | Locking / Cortical Screw | 6–30 mm | 5 mm |
Instrument Features
- Bender: Enables one-handed bending and contouring of micro plates through small incisions.
- Pointed Reduction Forceps: Holds fragments firmly and helps prevent shifting during drilling or screw insertion.
- Kirschner Wire Cutting Forceps: Precision jaws for 1.5 / 2.0 / 2.4 mm K-wires, helping prevent slipping or incomplete cuts.
- Self-locking Reduction Forceps: Ratchet mechanism maintains constant pressure during reduction.
- Depth Gauge: 0–30 mm for phalanges and metacarpals; 0–50 mm for longer metacarpal shafts or distal radius applications.

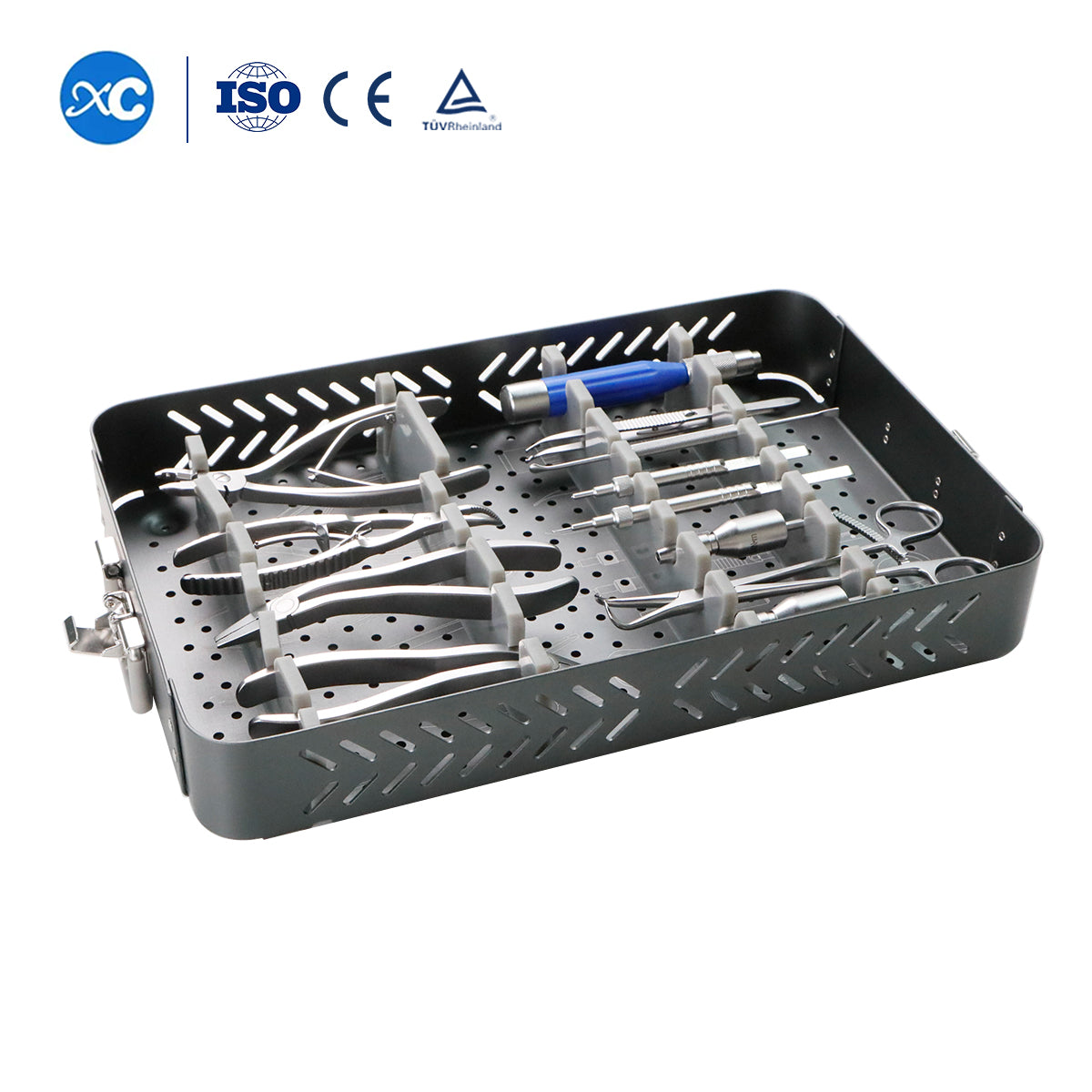

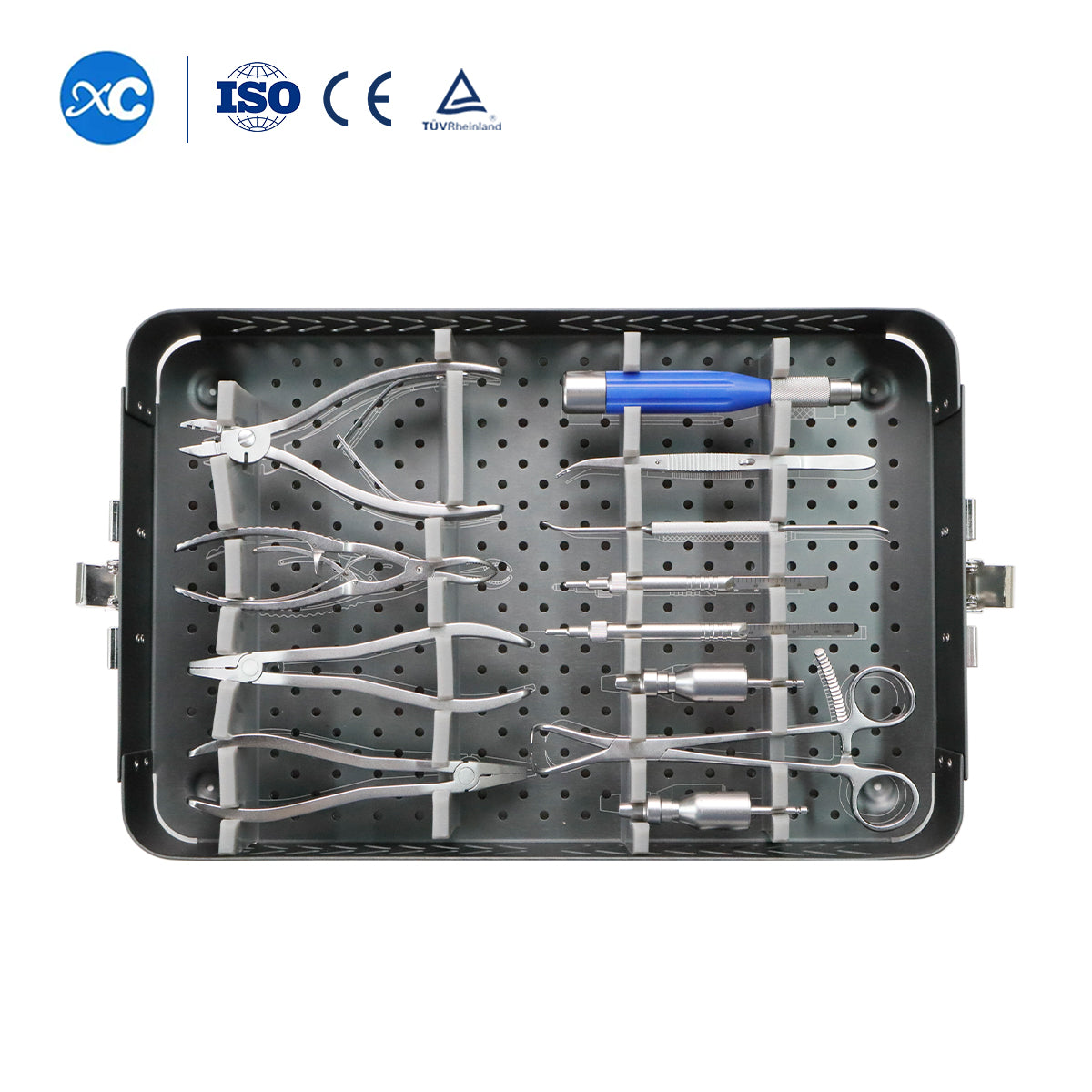

Instrument Configuration
| No. | REF | Description |
|---|---|---|
| 1 | TYCSC50 | 0–50 mm Depth Gauge |
| 2 | TYCSC30 | 0–30 mm Depth Gauge |
| 3 | TYAKSB | AO Quick Coupling Handle |
| 4 | TY04NLJT | 0.4 N·m Quick Torque Chuck |
| 5 | TY08NLJT | 0.8 N·m Quick Torque Chuck |
| 6 | WXJCZSWFQ | Self-locking Reduction Forceps |
| 7 | WXJCJQQ | Kirschner Wire Cutting Forceps |
| 8 | CQTYCDN | Screw Holder |
| 9 | WXJCZWQ | Bender |
| 10 | WXJCJTFWQ | Pointed Reduction Forceps |
| 11 | WXJCSGMBL5 | Double-head Periosteal Dissector, 5 mm |
| 12 | WXJCMJHL | Sterilization Box |
Material & Craftsmanship
- Titanium alloy conforming to GB/T 13810-2017.
- Fine polishing, grinding and oxidation for consistent color and surface finish.
- CNC turning, milling and wire EDM processing for precision manufacturing.
Sterilization & Compliance

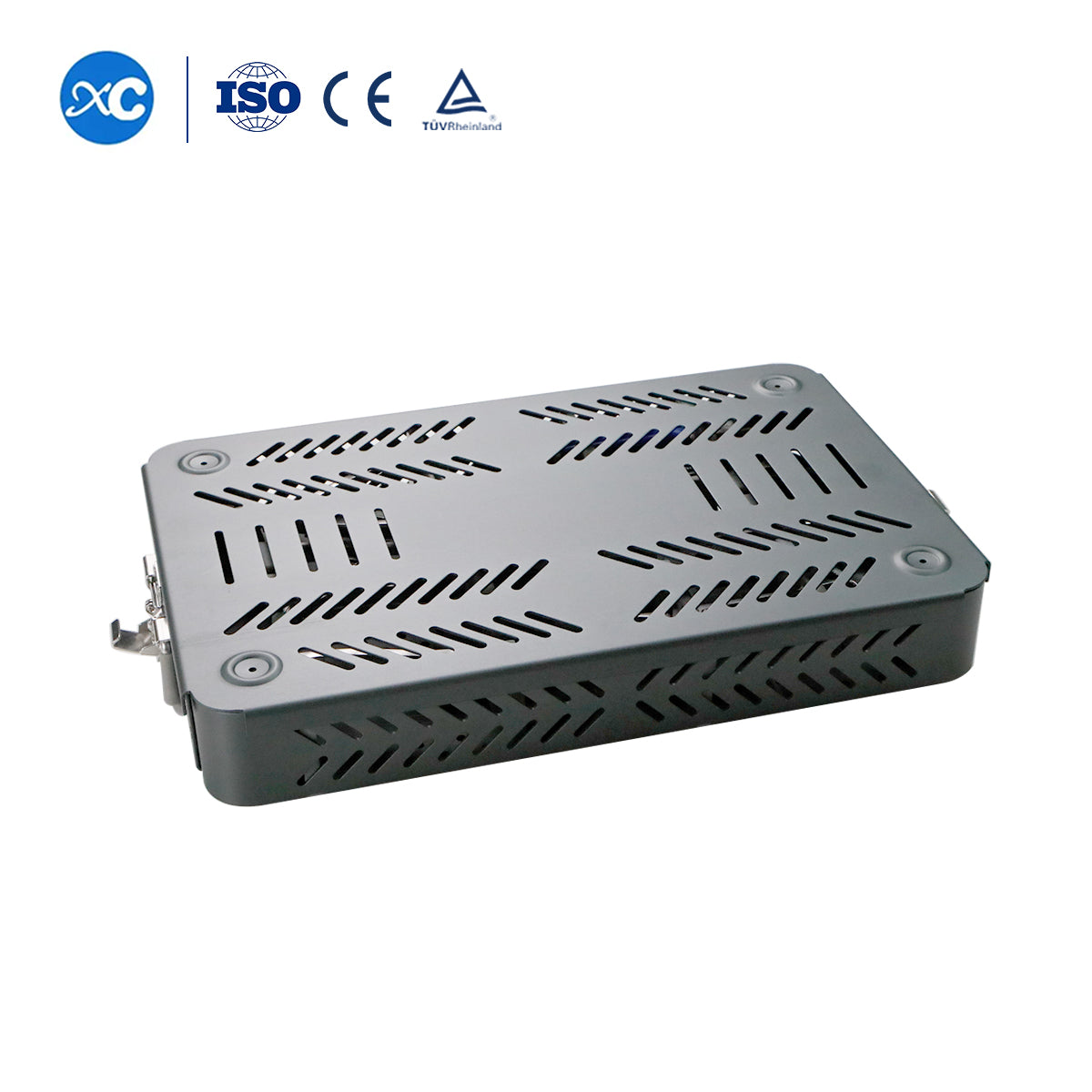

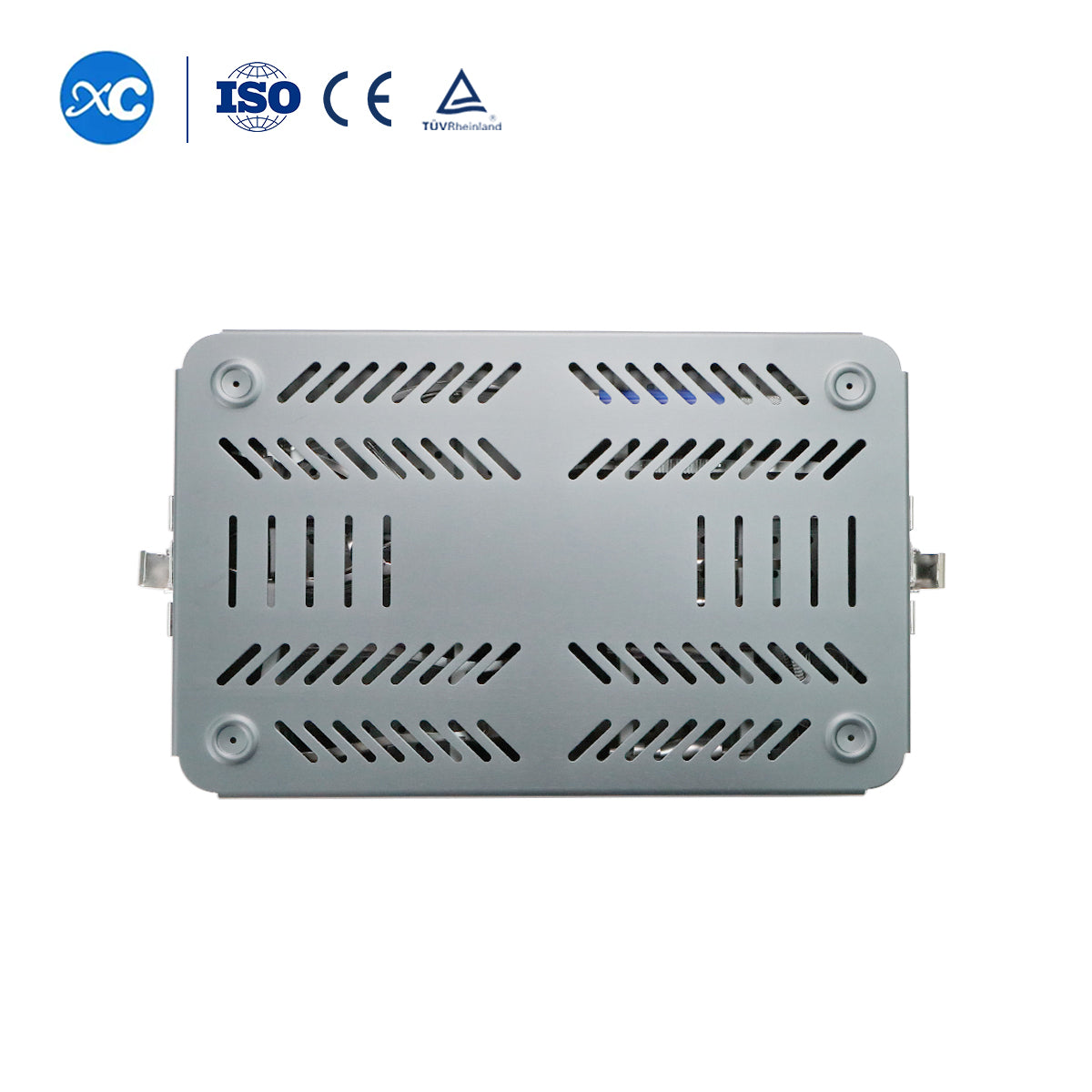

- Sterilization box included.
- EO sterile packaging option available upon request.
- CE Marked
- ISO 13485 Quality Management System
Ordering Information: Please specify the required plate system, 1.5 mm, 2.0 mm or 2.4 mm, and the corresponding locking or cortical screw configuration when placing an order.
