Transforaminal Endoscopic 10.0 Instrument Set
Transforaminal Endoscopic 10.0 Instrument Set
Available in stock (99)
Couldn't load pickup availability

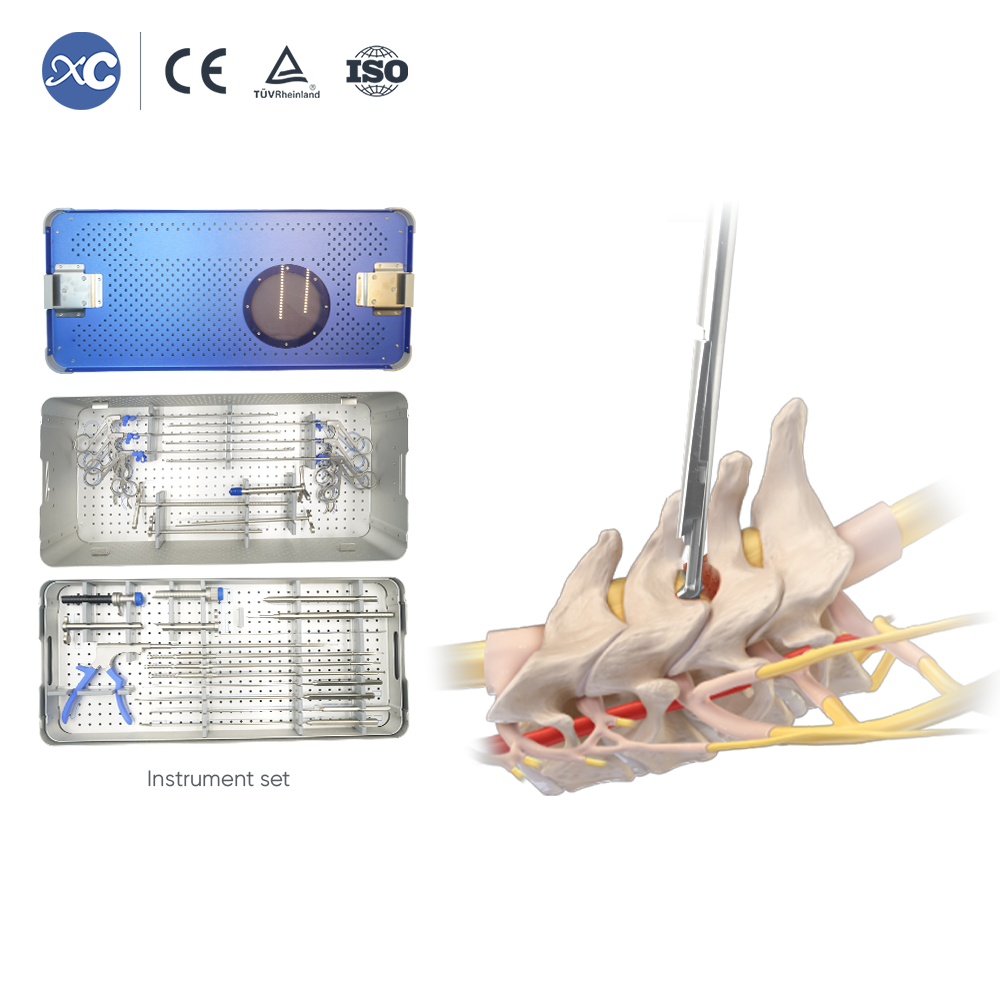

10.0 Interlaminar Endoscopic Instrument Set
The 10.0 Interlaminar Endoscopic Instrument Set is designed for minimally invasive lumbar endoscopic procedures. It supports access channel establishment, tissue handling, decompression, trephine operation, and controlled bone resection.

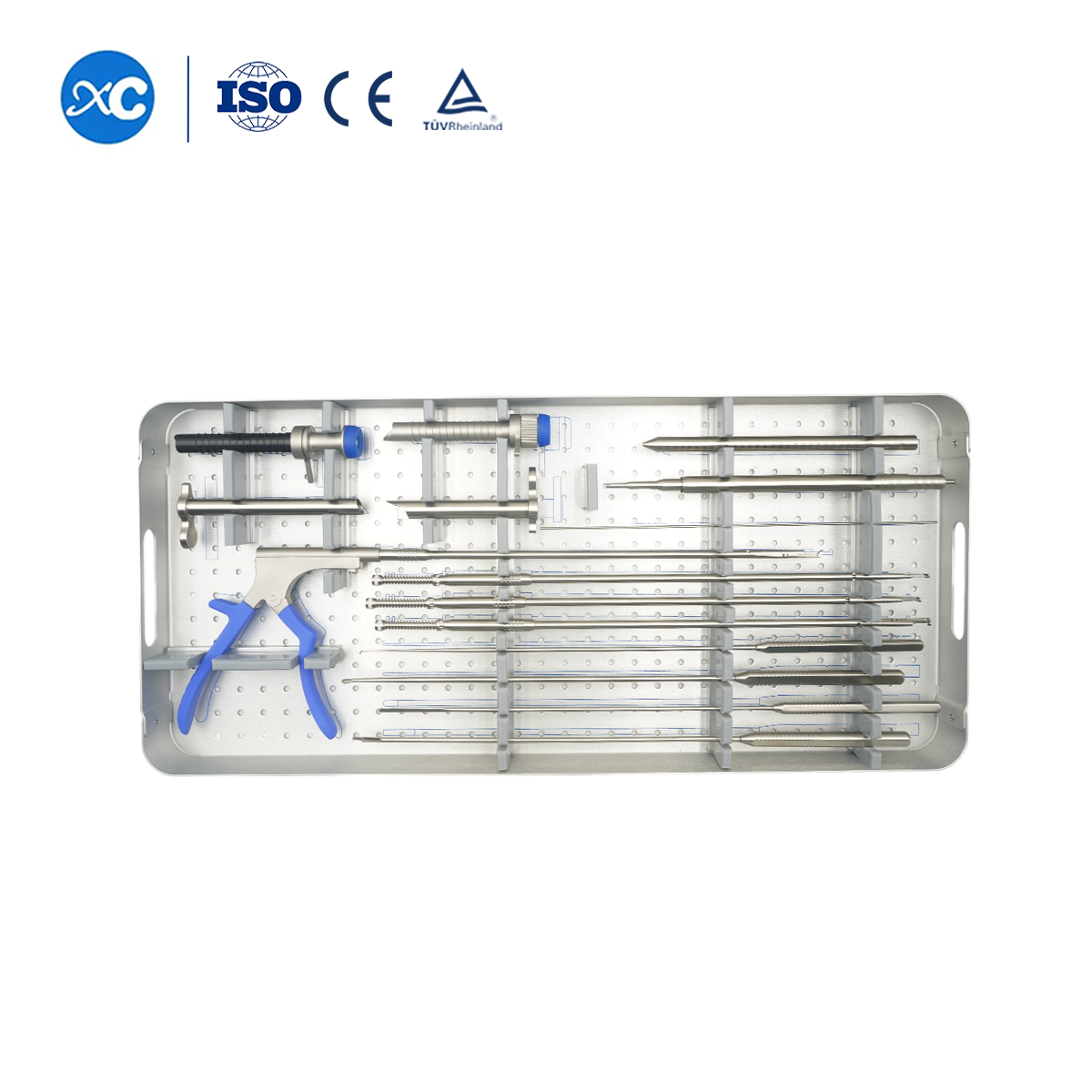

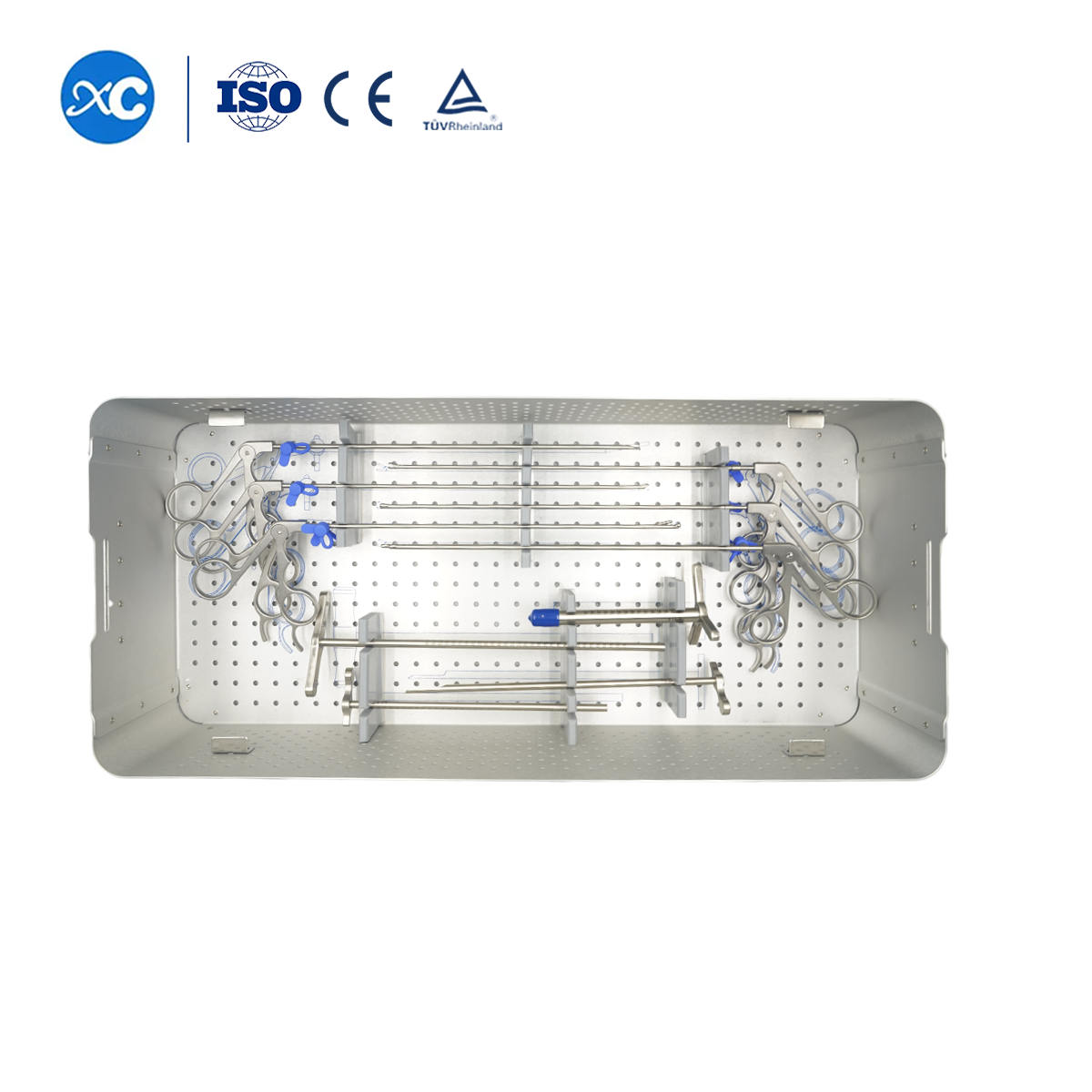

The system includes stepwise dilators, protective sleeves, trephines, forceps, elevators, curettes, osteotomes, rongeurs, and a disinfection box for complete interlaminar endoscopic workflow support.
Core Advantages
Large Working Channel
Large-channel design provides wider operating space and clearer visualization during endoscopic procedures.
Broad Indications
Suitable for lumbar disc herniation, sequestered fragments, calcification, and selected lumbar spinal stenosis cases.
Dual-Instrument Access
One channel can accommodate dual instruments simultaneously to improve efficiency in minimally invasive procedures.
Product Functions
- High-definition visualization for endoscopic spinal procedures.
- Minimally invasive decompression and tissue removal.
- Disc tissue grasping, cutting, and removal under direct visualization.
- Bone spur, ligamentum flavum, and osteophyte resection support.
- Stepwise dilation and working channel establishment.
- Trephine and rongeur instruments for controlled bone resection.
Procedure Support
The instrument set supports a typical interlaminar endoscopic workflow, including fluoroscopic guidance, posterolateral mini-incision, puncture, guide wire placement, serial dilation, working cannula placement, endoscopic procedure, decompression, and ablation.
Indications
| Category | Applications |
|---|---|
| Lumbar Disc Disorders | Lumbar disc herniation; sequestered disc fragments; calcified lumbar disc herniation |
| Degenerative Spinal Conditions | Lumbar spinal stenosis; lateral recess stenosis; foraminal stenosis |
Materials & Manufacturing
| Item | Details |
|---|---|
| Material | Titanium alloy and medical-grade stainless steel materials according to instrument function |
| Manufacturing | CNC turning, milling, grinding, polishing, and wire EDM processing |
| Surface Treatment | Fine polishing, electropolishing, oxidation, matte or mirror finishing |
| Quality Control | Mechanical performance testing and full-process traceability |
| Quality System | ISO 13485 medical device quality management system |
Instrument Configuration
| No. | REF | Instrument Name | Specification |
|---|---|---|---|
| 1 | ZKJ10DZ15200 | Location Pin | Length 200mm, diameter 1.5mm |
| 2 | ZKJ10KKQ32230 | Stepwise Dilator | Conical tip, inner diameter 1.7mm, outer diameter 3.2mm, length 230mm |
| 3 | ZKJ10KKQ5210 | Stepwise Dilator | Conical tip, inner diameter 3.2mm, outer diameter 5.0mm, length 210mm |
| 4 | ZKJ10KKQ8190 | Stepwise Dilator | Conical tip, inner diameter 5.2mm, outer diameter 8.0mm, length 190mm |
| 5 | ZKJ10KKQ10170 | Stepwise Dilator | Conical tip, inner diameter 8.2mm, outer diameter 10mm, length 170mm |
| 6 | ZKJ10KKQ113150 | Stepwise Dilator | Conical tip, inner diameter 10.2mm, outer diameter 11.3mm, length 150mm |
| 7 | ZKJ10TG102120LW | Protective Sleeve | Beveled tip, external thread design, polystyrene material, radiopaque, inner diameter 10.2mm, outer diameter 14mm, length 120mm |
| 8 | ZKJ10TG10285LW | Protective Sleeve | Beveled tip, external thread design, stainless steel material, inner diameter 10.2mm, outer diameter 14mm, length 85mm |
| 9 | ZKJ10TG102120 | Protective Sleeve | With end cap, length 120mm, outer diameter 11.2mm, inner diameter 10.2mm |
| 10 | ZKJ10TG6195 | Sleeve | φ6.0×195mm, flat end |
| 11 | ZKJ106231 | Sleeve | φ6.0×231mm, duckbill opening with 30mm length |
| 12 | ZKJ10KKQ12180 | Dilator | Pencil-tip dilator, φ10×1.2×180mm |
| 13 | ZKJ10GJ102115 | Extra-Scope Visible Trephine | Length 115mm, outer diameter 11.3mm, inner diameter 10.2mm |
| 14 | ZKJ10TG11595 | Extra-Scope Visible Trephine Protective Sleeve | Length 95mm, outer diameter 12.5mm, inner diameter 11.5mm |
| 15 | ZKJ10GJ55260 | Intra-Scope Trephine | Visible trephine, length 260mm, outer diameter 6.5mm, inner diameter 5.5mm |
| 16 | ZKJ10SHZ35260 | Pituitary Forceps | Diameter 3.5mm, length 260mm, with overload protection device |
| 17 | ZKJ10SHZ40260 | Pituitary Forceps | Large and straight, diameter 4.0mm, length 260mm, with overload protection device |
| 18 | ZKJ10SH45D35260 | Pituitary Forceps | Diameter 3.5mm, 45° upward angled, length 260mm, with overload protection device |
| 19 | ZKJ10SHC35260 | Pituitary Forceps | Long cup-shaped, diameter 3.5mm, 0°, length 260mm, with overload protection device |
| 20 | ZKJ10ZQ35260 | Grasping Forceps | Large, toothed, diameter 3.5mm, length 260mm, with overload protection device |
| 21 | ZKJ10YQ35260 | Ponzo Forceps | 40°, diameter 3.5mm, length 260mm, with overload protection device |
| 22 | ZKJ10YQ40260 | Ponzo Forceps | 0°, diameter 4.0mm, length 260mm, with overload protection device |
| 23 | ZKJ10ZQ25260W | Spring Forceps | φ2.5×260mm |
| 24 | ZKJ10LG30260 | Nerve Retractor | Hook-shaped, length 260mm, diameter 3.0mm, L-type |
| 25 | ZKJ10BLQ30260 | Nerve Elevator | Length 260mm, diameter 3.0mm |
| 26 | ZKJ10GC4260 | Curette | φ4×260mm |
| 27 | ZKJ10GZ45260 | Osteotome | φ4.5×260mm |
| 28 | ZKJ10YGSBG | Rongeur Handle | Ponzo rongeur handle, rubber-coated, with quick-release unlocking switch |
| 29 | ZKJ10YG40D25260 | Rongeur | Kerrison spine endoscopy punch, angle 40°, diameter 5.5mm, jaw width 2.5mm, 360° rotatable and adjustable, working length 260mm, designed for blind insertion |
| 30 | ZKJ10YG90D25 | Rongeur | Kerrison spine endoscopy punch, angle 90°, diameter 5.5mm, jaw width 2.5mm, 360° rotatable, designed for blind insertion |
| 31 | ZKJ10YG40D35260 | Rongeur | Kerrison spine endoscopy punch, angle 40°, diameter 5.5mm, jaw width 3.5mm, 360° rotatable and adjustable, working length 260mm, designed for blind insertion |
| 32 | ZKJ10YG90D35 | Rongeur | Kerrison spine endoscopy punch, angle 90°, diameter 5.5mm, jaw width 3.5mm, 360° rotatable, designed for blind insertion |

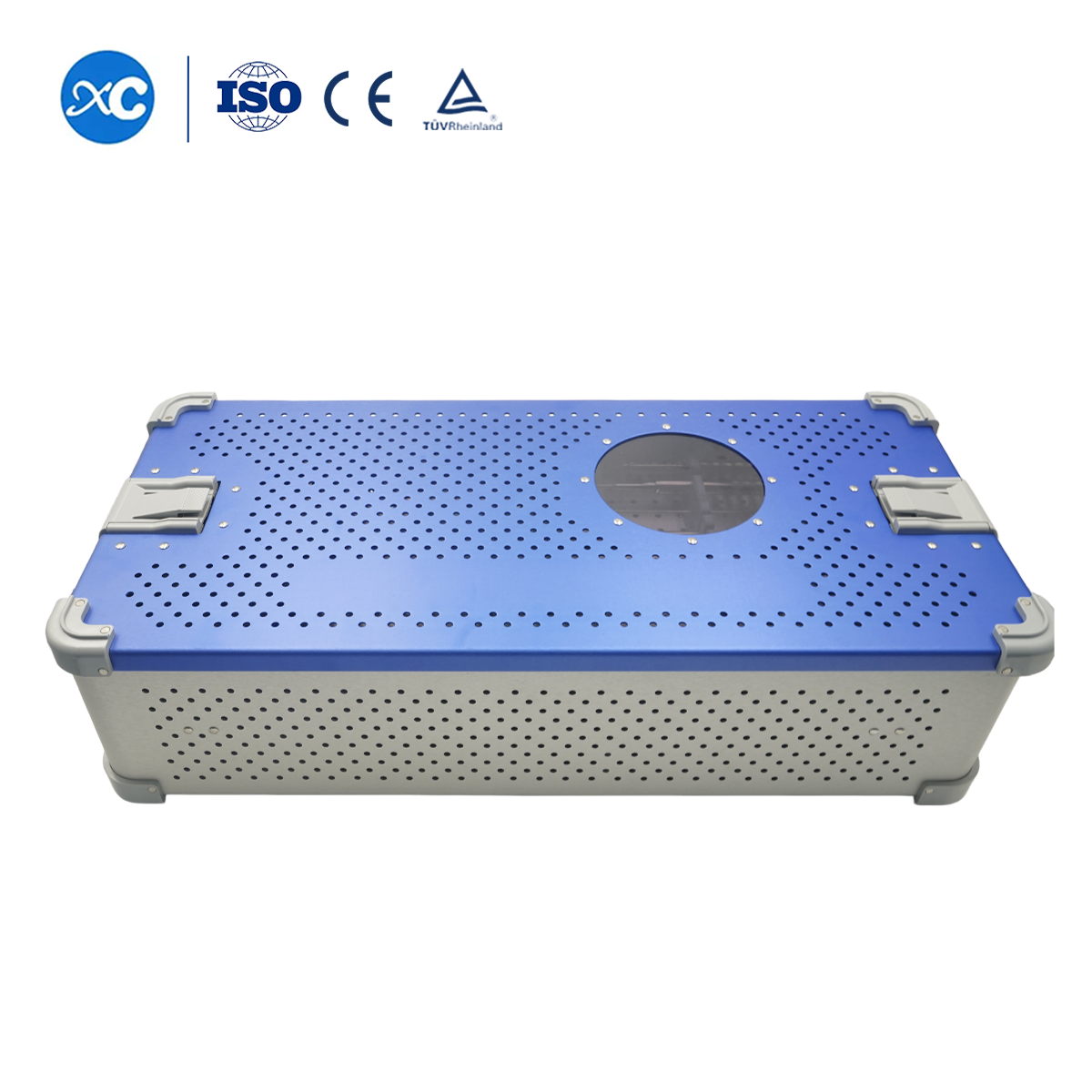

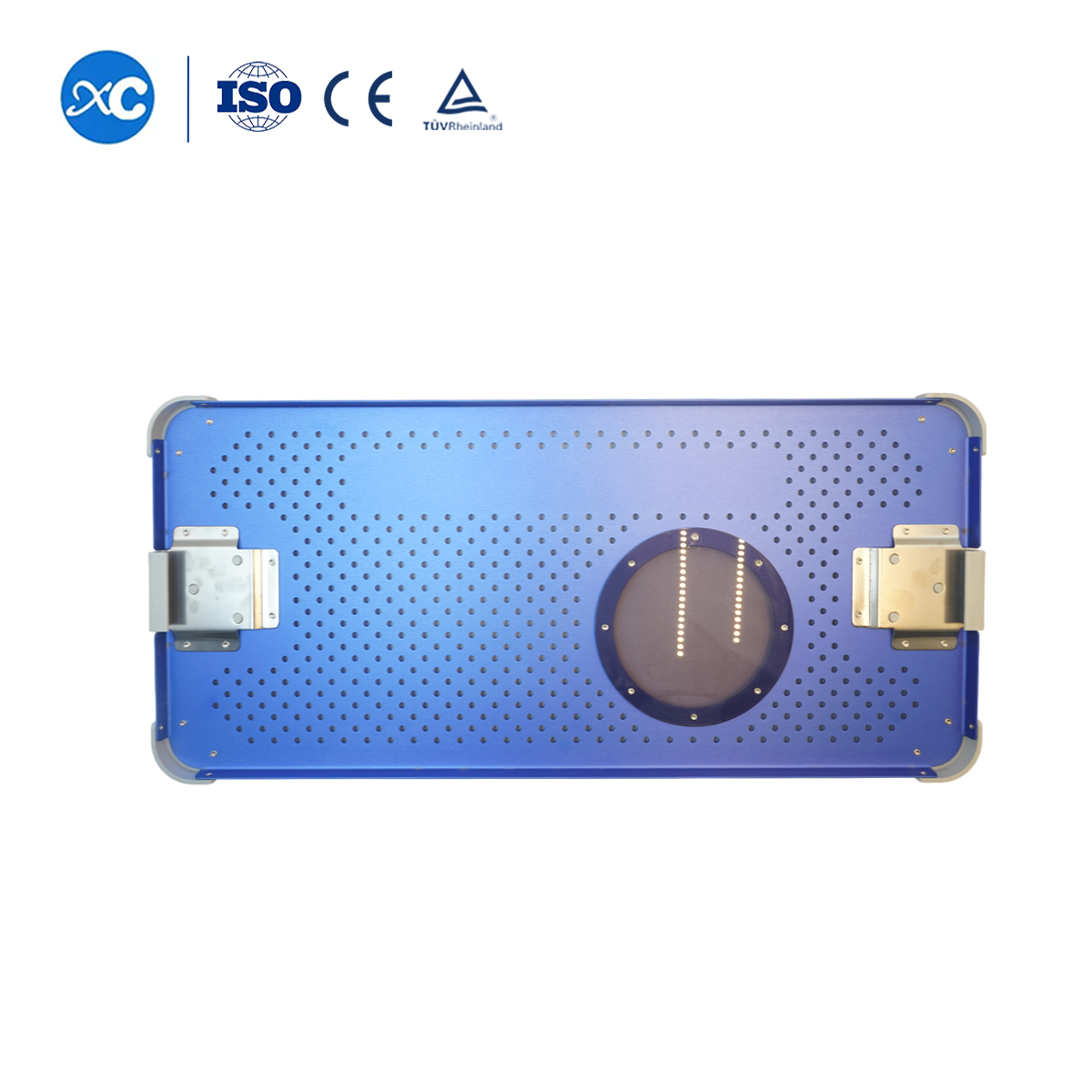

| 33 | ZKJ10MJHL | Disinfection Box | Convenient for overall disinfection |
